How to Use Simple Methods to Determine if Newly Purchased Circular Blades Have Been Precision Ground?

When purchasing new circular blades, the worst fear is encountering inferior products that look shiny on the surface but cause constant burrs and halve the blade life once installed. Blades that have truly undergone precision grinding have identifiable microscopic characteristics on their edges and surfaces. Mingbai Mechanical Tool Technology Co., Ltd. teaches you several quick methods to judge without professional instruments.

1. Look: Observe the edge with the naked eye or a magnifying glass

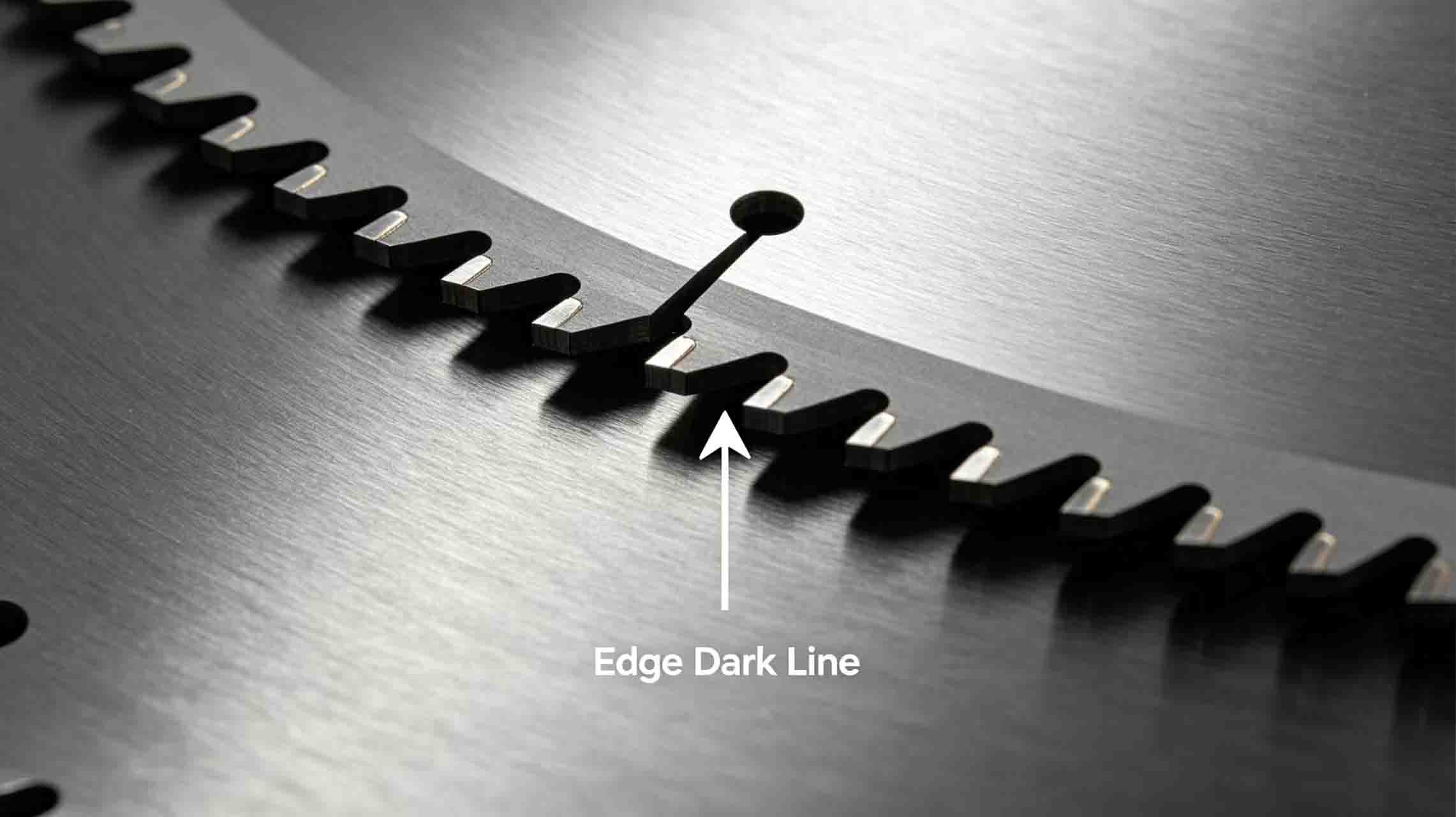

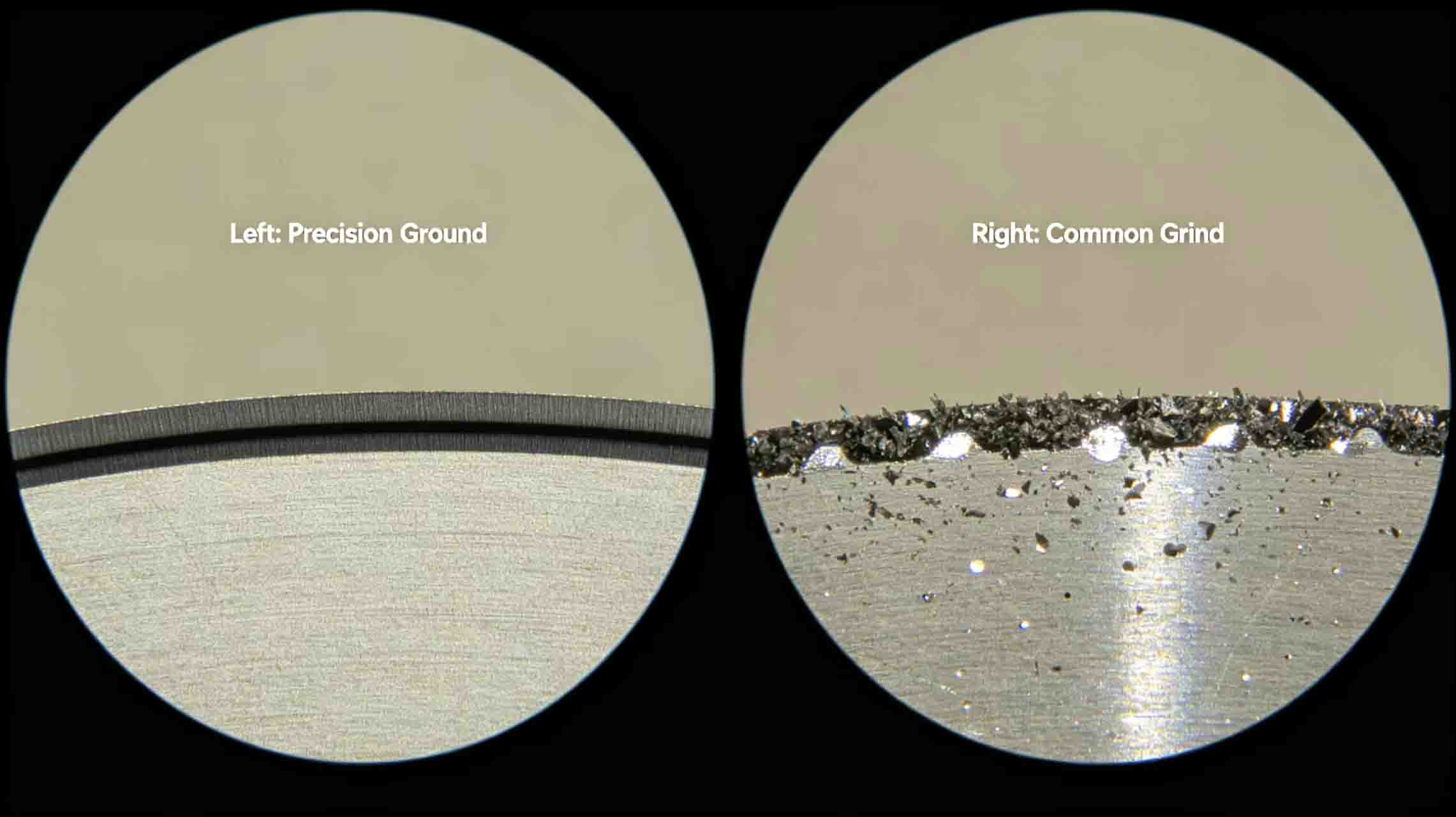

High-precision circular blades for precision slitting – after precision grinding, the edge will show a uniform, non-reflective "dark line" (actually a very small edge land) about 0.05-0.1mm wide. In contrast, ordinary ground blades often have visible burrs, chipping, or local reflective spots on the edge.

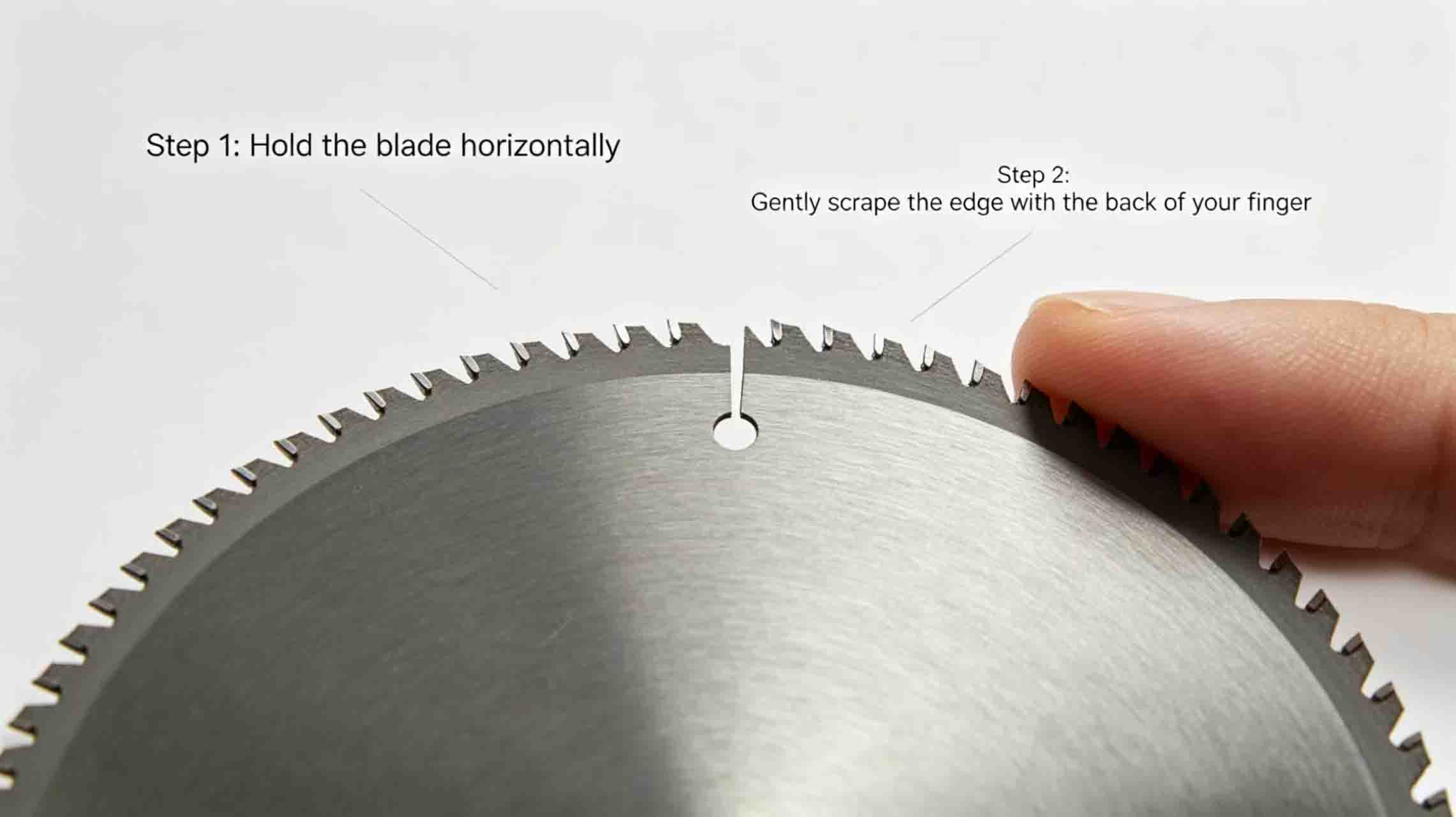

2. Feel: Lightly scrape the sides of the edge with a fingernail or the back of a finger

Polished circular blades for mirror-grade surface finishing – after precision grinding, both sides of the edge are as smooth as a mirror, and a fingernail glides without roughness. Rough ground blades have microscopic grooves, and the fingernail will feel resistance. Use the back of a finger to avoid cuts.

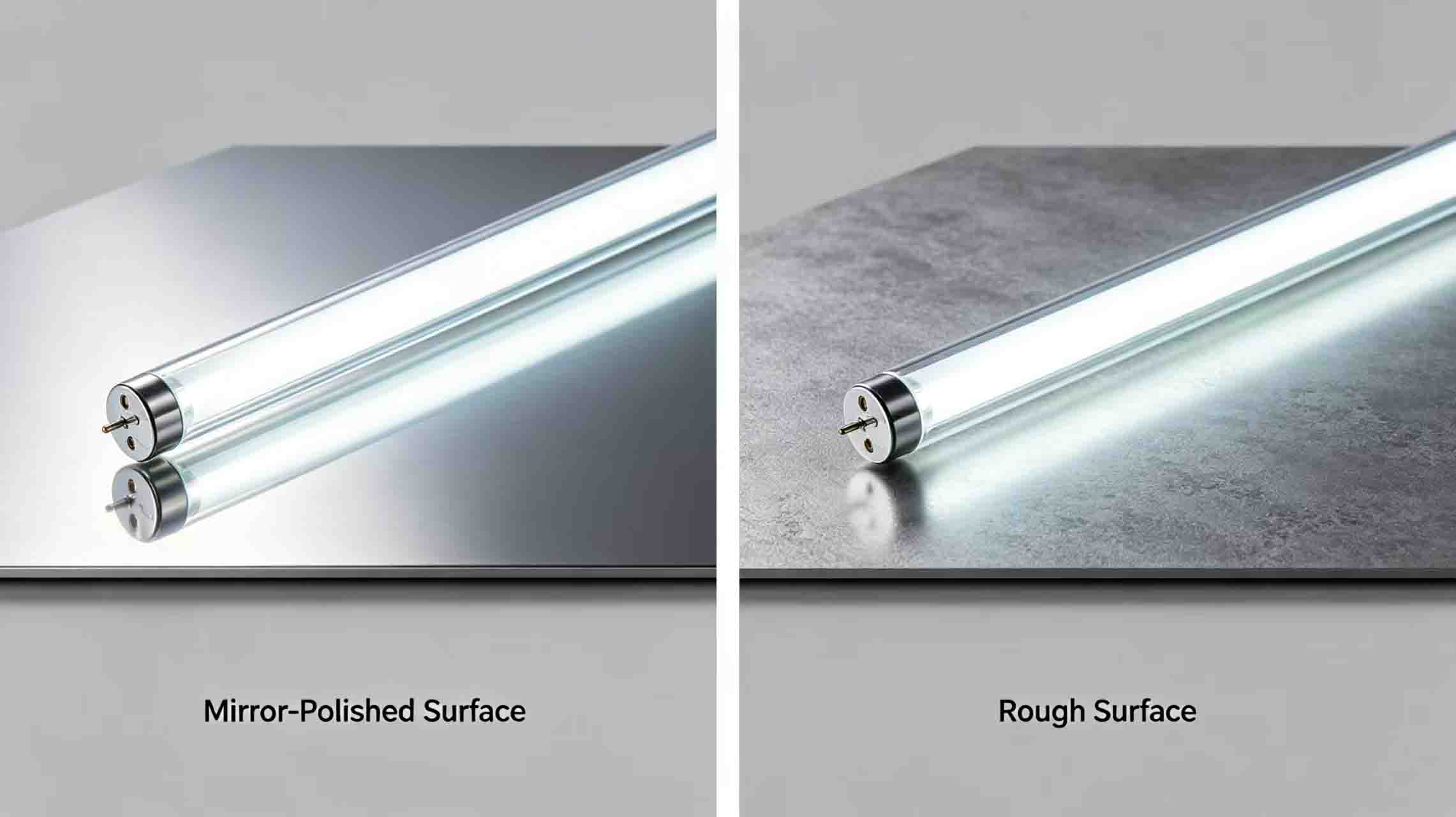

3. Shine: Side-illuminate the surface reflection with a strong light

Wear-resistant circular blades for stainless steel strip cutting – after precision grinding, the reflected image on the surface is clear and undistorted; ordinary ground surfaces cause the reflected lamp tube image to distort and blur. Qualified blades show uniform reflected light and a clear lamp tube edge.

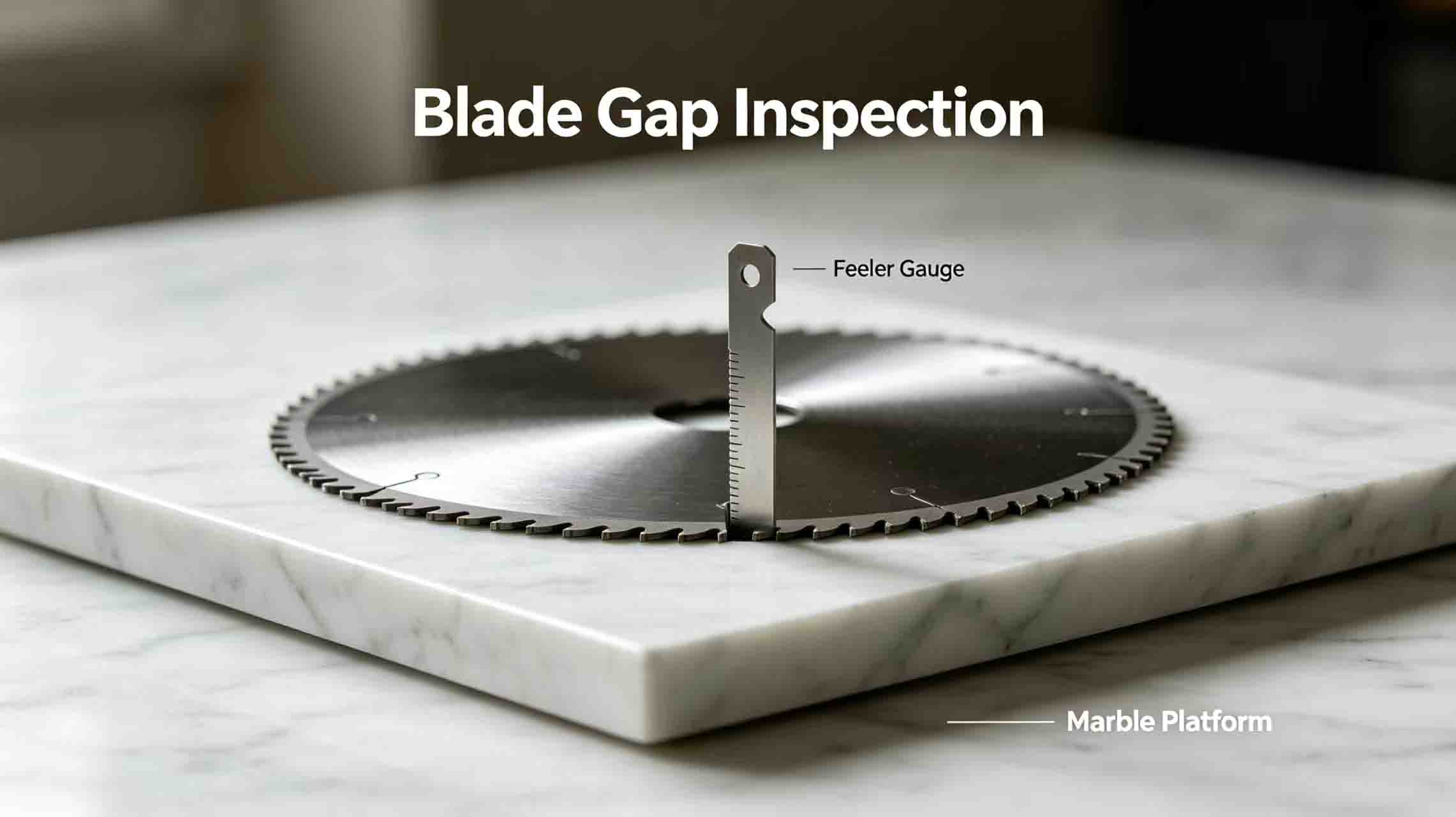

4. Measure: Quickly verify with a feeler gauge or dial indicator

Alloy blades for high-hardness alloy materials – place the blade flat on a clean granite surface plate or glass plate, and try to insert a 0.02mm feeler gauge between the blade and the plate. If the gauge can be inserted more than 5mm, flatness is poor. Then use a micrometer to measure thickness at different positions on the blade edge; the difference should be ≤0.005mm.

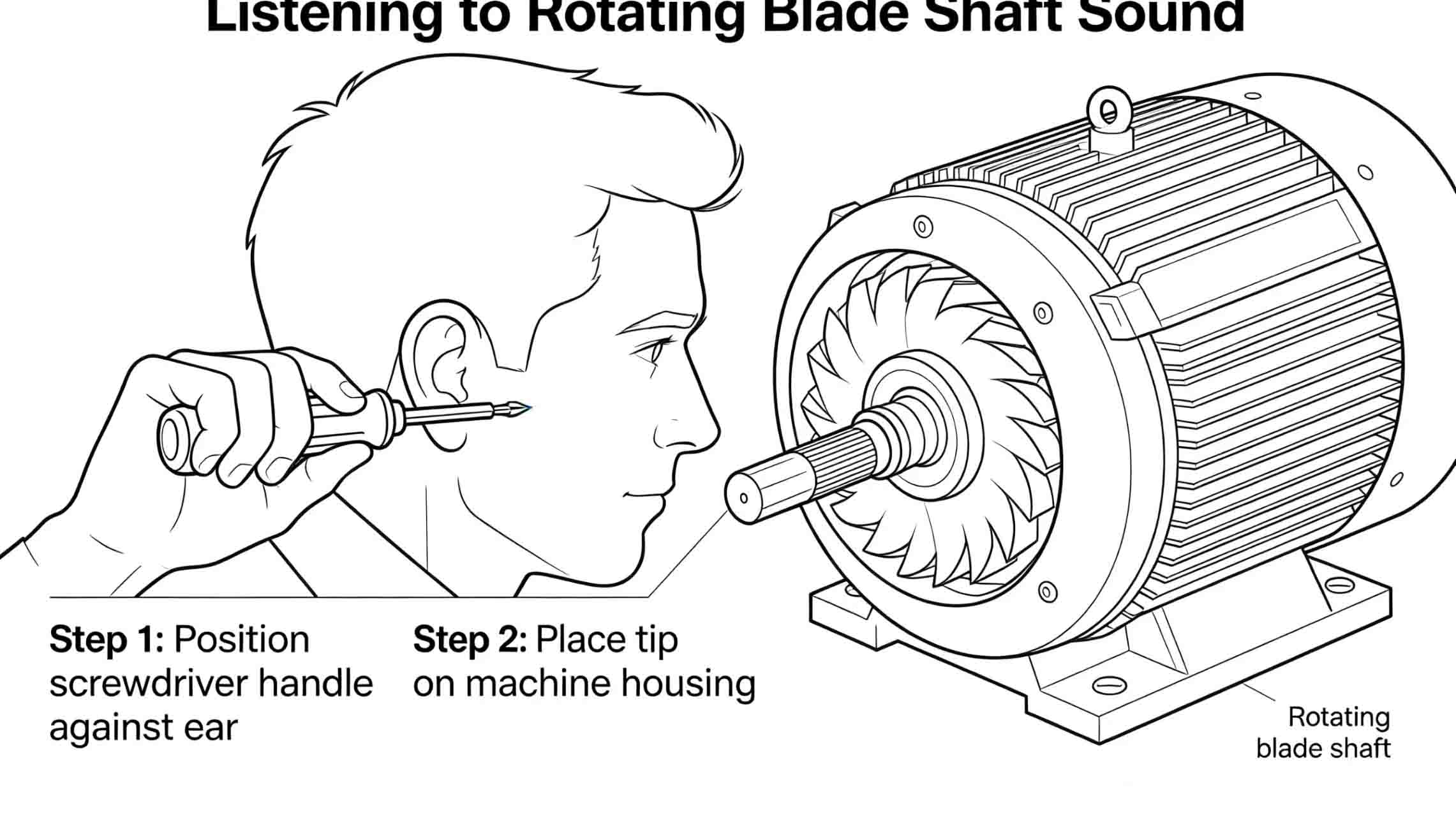

5. Test: Listen to the no-load rotation after installation

Slitter blades for high-speed slitting – install the blade on the equipment, rotate manually or at low speed, and listen with a screwdriver handle pressed against your ear. A precision ground blade runs with a steady, continuous sound; a blade with runout or grinding defects will produce a periodic "swish-swish" sound.

6. Compare: Use a known qualified blade as a reference

Ultra-thin circular blades for food packaging film slitting – if you have a blade that has been performing well, place it side by side with the new blade under a strong light and compare the edge reflection. The width of the dark line on a qualified new blade should be similar to that of the reference blade.

Mingbai Technology's Quality Commitment

Every custom blade and stainless steel blade produced by Mingbai Mechanical Tool Technology Co., Ltd. undergoes precision grinding on five-axis CNC grinders and 100% edge inspection before shipment. We guarantee edge roughness Ra ≤ 0.2μm, flatness ≤ 0.002mm (within 200mm diameter), and edge land width controlled between 0.03-0.08mm (adjusted according to material).

Conclusion

Determining whether circular blades have been precision ground does not require complex instruments. Look at the edge dark line, feel the surface smoothness, shine for reflection clarity, measure flatness and parallelism, listen to the no-load sound, and compare with a reference sample. Master these six techniques, and you will easily identify high-quality blades. Mingbai Technology is willing to be your reliable blade supplier.
