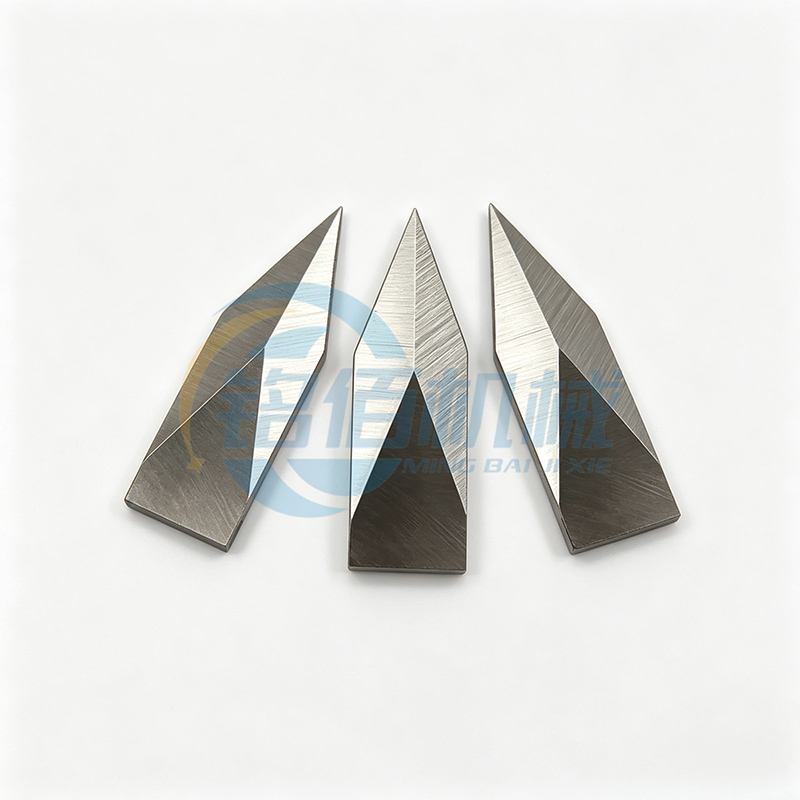

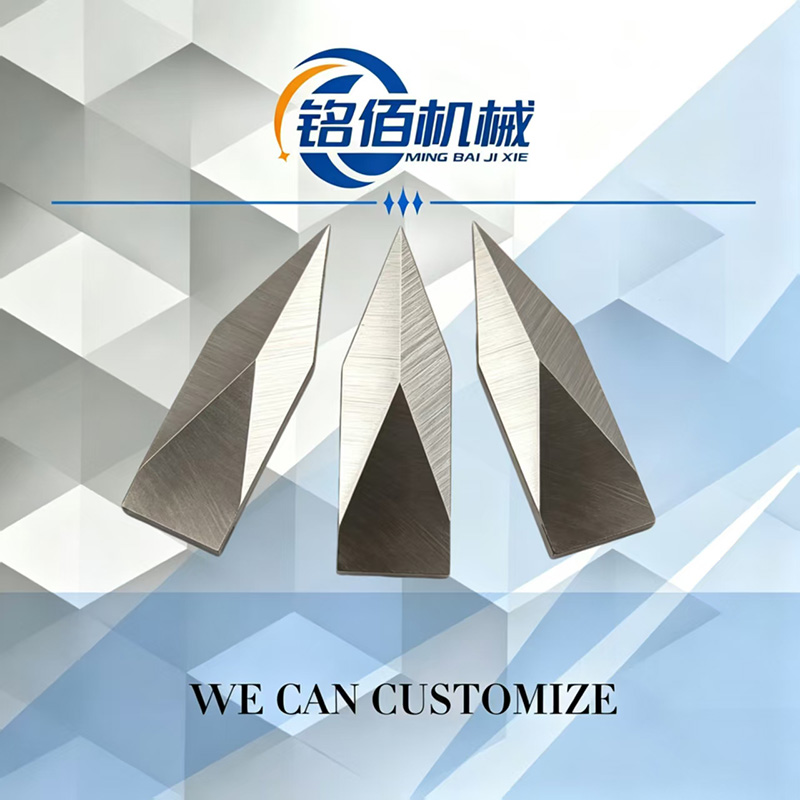

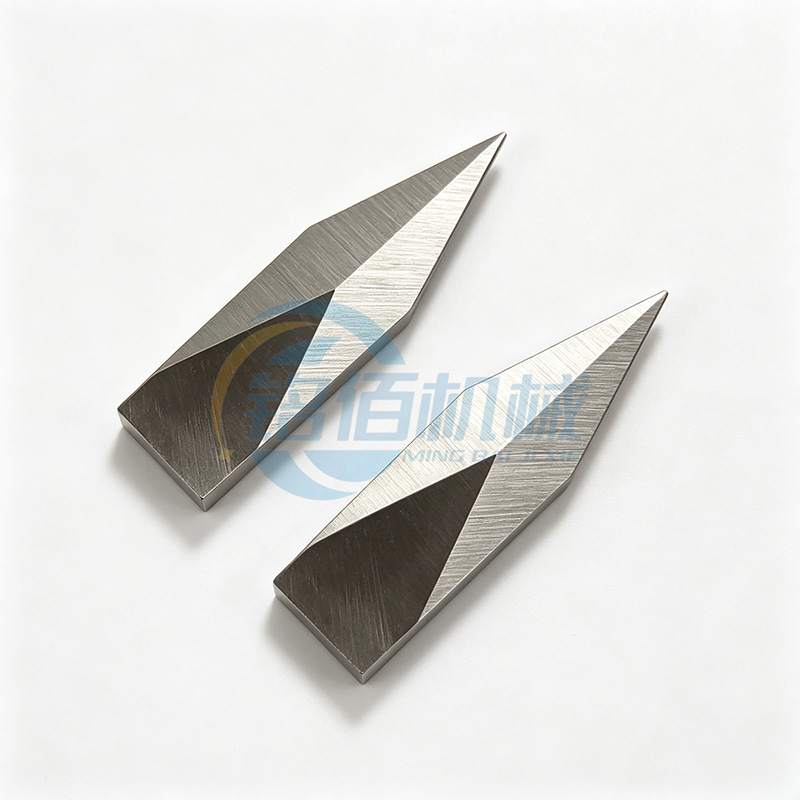

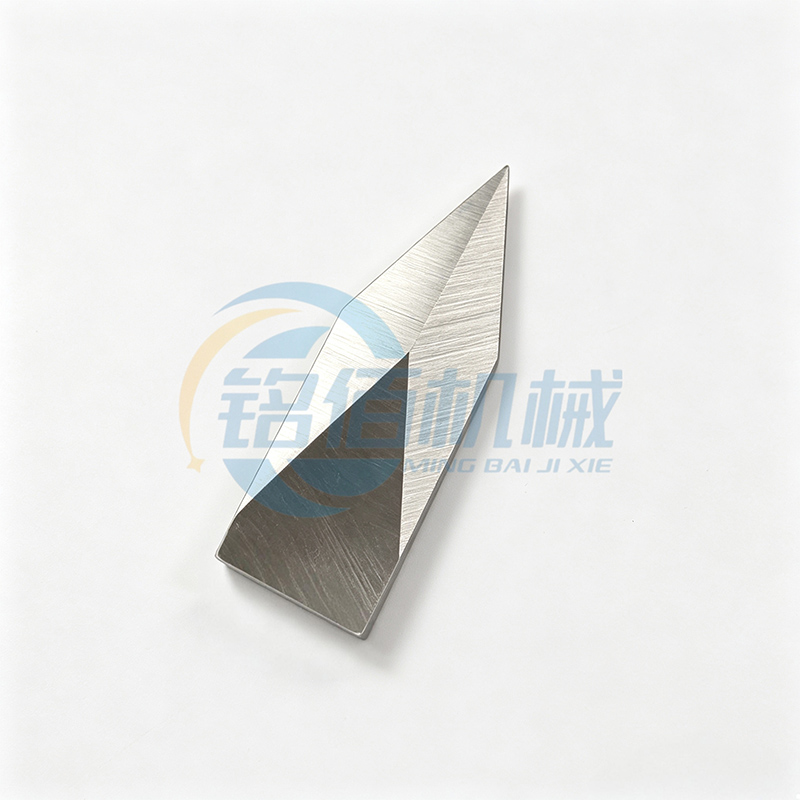

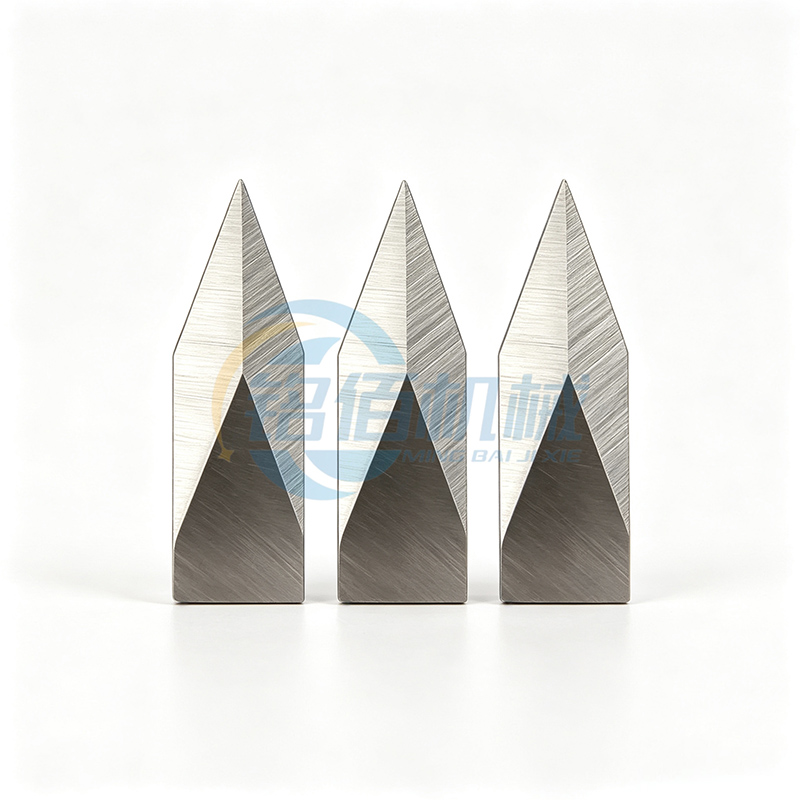

Tel.: +86-13855519988High‑Rigidity Multi‑Bevel Bottle‑Cap Slitting Blade is designed for pre‑treatment of plastic bottle‑cap recycling and dismantling. With multi‑bevel pointed‑tip cutting‑edge, available in 42CrMo and Cr12MoV. Precision‑ground and heat‑treated for balanced rigidity, impact‑resistance and wear‑resistance. Suitable for longitudinal and circumferential slitting of various bottle‑caps. Custom specifications are supported, widely applied in plastic‑recycling and sorting lines.
Product Name :
High‑Rigidity Multi‑Bevel Bottle‑Cap Slitting BladeOrder(MOQ) :
1PCSPayment :
T/T,Western union,Alibaba,International Bank TransferMaterial :
42CrMo, Cr12MoVShipping Port :
Shanghai/Guangzhou or otherOEM/ODM :
support
Product Overview
Bottle‑cap slitting blade is a dedicated cutting part for plastic recycling dismantling equipment. It splits various plastic and composite bottle‑caps. Edge quality ensures flat cuts and stable‑efficient operation of recycling pre‑treatment lines.
Profile & Structural Design
Multi‑bevel pointed‑tip with compound cutting edges. Progressive‑cut‑in buffers shear impact and reduces chipping. Flat substrate and reference surface fit stationary seats and rotary holders. Multi‑facet tip works for composite caps with ribs and gaskets, resists deformation and delivers smooth cuts.
Material Selection
Two steel grades available: 42CrMo, Cr12MoV. 42CrMo offers good rigidity and impact‑resistance for lines with impurities and complex conditions. Cr12MoV provides high wear‑resistance and longer‑life edge for high‑volume continuous production.
Manufacturing & Process Features
Processed by forging, rough grinding and precision grinding. Custom heat‑treatment balances rigidity, wear‑resistance and toughness. High‑finish ground edge reduces hot‑melting plastic sticking. Stress‑relief treatment minimizes deformation risk under long‑time high‑speed operation.
Main Application Scenarios
For plastic‑recycling pre‑treatment. Processes PP, PE caps and composite caps with rubber gaskets for longitudinal splitting and circumferential slitting. Cuts inner ribs and bosses, widely used in cap dismantling and plastic‑sorting pre‑processing lines.
Core Product Advantages
Multi‑bevel progressive‑cutting edge saves cutting force and reduces plastic debris. High rigidity resists heavy‑load deformation. Stress‑relieved structure keeps dimension stable in long‑hour high‑speed running, lowers defect rate for various cap materials.
Specification & Customization Scope
Blade thickness, tip angle and effective edge length are adjustable per cap size and material hardness. Mounting holes and locating slots can be customized for existing holders. Edge‑grinding can be optimized. No fixed standard sizes, customized according to equipment and raw‑material conditions.
Operation Notes
Fasten tool‑holder firmly to avoid blade shifting at high‑speed. Control feed rate properly; avoid over‑load cutting thick‑wall caps. Slow down feed when plastic sticking occurs. Replace blades with chipped or dull edges. Dull blades only squeeze caps and produce many defective parts.
Our production process:

1.Cutting
2.Forging
3.Plastic surgery
4.Heat treatment
5.Modification
6.Slice
7.Initial grinding
8.Sharpen
9.Plastic surgery
10.Fine grinding
11.Plastic surgery
12.Chamfer
13.Test
14.Package
15.Factory

Our products serve all walks of life:
Suitable for cartons, corrugated paper, gift boxes, advertising industry chevron board, KT board, cardboard cutting, clothing fabrics, carbon fiber and glass fiber, various papers, films, PET, automobile wire ring mats, various composite materials fully surrounded mats, rubber, gray board, plastic, embroidery materials, automobiles, carriages, papermaking, textiles, metallized film, tobacco, packaging materials, BOPP film, food machinery, medicinal materials, aluminum foil, metallized film, tobacco, electronics, light industry, food, leather, chemical fiber, glass fiber, textiles, stationery, plastics, feed, paper tubes, cartons, woodworking and other industries.

Packing&Shipping
Efficient logistics and distribution: We use fast and reliable logistics partners to ensure that your order can be delivered in time. We work with world-renowned logistics companies to provide flexible logistics options and full tracking services so that you can always know the shipping status of your goods.
FAQ:
Q1: Can this blade cut composite bottle‑caps with rubber sealing gaskets?
A: Yes. Rubber tends to cause material sticking, regularly clean edge residues during production.
Q2: Is customized cutting‑in angle available?
A: Yes. Angle shall match cap wall‑thickness and machine speed; improper setting causes incomplete cut or edge chipping
Q3: How to tell when blades need maintenance in continuous recycling lines?
A: Excessive burrs, incomplete splitting, caps squeezed but not cut mean dull edge, please maintain or replace in time.
Q4: Can blade shape and mounting positions be customized for non‑standard old‑machine holders?
A: Non‑standard customization is available. Providing original blade sample helps accurate dimension matching.
Q5: How to improve plastic‑sticking issue in production?
A: Adopt higher‑finish edge grinding, moderately reduce feed speed, regularly clear plastic residues on cutting‑edge.
