During slitting production, operators occasionally find small cracks on the surface of circular blades, slitter blades, or alloy blades. Some of these cracks are visible to the naked eye, while others can only be seen with a magnifying glass. When encountering such a situation, many people's first reaction is, "Can it still be used?" Based on materials science and field experience, Mingbai Mechanical Tool Technology Co., Ltd. provides you with judgment criteria and handling recommendations.   1. Two Types of Cracks: Surface Cracks vs. Deep Cracks   Surface micro-cracks: The depth is usually less than 0.05 mm, existing only in the blade's surface layer. Such cracks may be caused by grinding thermal stress, coating shrinkage stress, or minor impact. If the crack does not extend to the edge and the blade material is high-speed steel or a tough stainless steel blade, it may be temporarily usable under low-load conditions.   Deep cracks: Depth exceeds 0.1 mm, or extends from the surface inward. Such cracks often originate from excessive heat treatment stress, quenching micro-cracks, or long-term fatigue. Once a deep crack appears, the blade may fracture completely at any time and must be taken out of service immediately.     2. Main Causes of Cracks   1. Grinding burn: During resharpening, excessive feed rate or insufficient cooling causes localized overheating, producing grinding cracks. Such cracks are usually fine linear, distributed near the edge.   2. Heat treatment defects: Quenching temperature too high or inadequate tempering leaves excessive residual stress inside the blade, which slowly releases during use and causes cracking.   3. Fatigue cracks: Precision machine blades alternating cutting stress, and fatigue cracks initiate at stress concentration points such as keyways or hole edges.   4. Impact cracks: The blade receives an unexpected impact, such as from material joints or hard inclusions, causing localized chipping that extends into a crack.   5. Coating cracks: PVD coatings are hard but brittle. Under significant impact, the coating may crack while the substrate remains intact. Such cracks only affect coating life; the blade can continue to be used.   3. Three-Step Method to Determine Whether It Can Still Be Used   Step 1: Identify the crack location   · Crack on the edge → Dangerous, pieces may fly off during cutting, must be taken out of service. · Crack in a non-stressed area of the blade body, such as near the bore → Lower risk, can be used with short-term monitoring. · Crack on the end face but not extending to the outer diameter → Further depth inspection needed.     Step 2: Assess crack depth   · Observe with a 10x or higher magnifying glass. If the crack is as fine as a hair and does not penetrate the surface → it may be a surface crack. · Use dye penetrant inspection: clean the blade, apply penetrant, wipe off, then apply developer. If the developing line is continuous and clear → the crack is relatively deep. · Gently scrape with a fingernail or a metal piece. If you can feel a groove → the depth may exceed 0.1 mm.     Step 3: Decide based on working conditions   · Low speed, low load, non-safety-critical position → a surface crack may be temporarily usable, but increase inspection frequency. · High speed, high load, automated production line → any crack is recommended to be taken out of service. · Cutting valuable materials or involving personnel safety → replace immediately.   4. Crack Tolerance for Different Blade Materials   · High-speed steel circular blades: Good toughness, surface micro-cracks can be used short-term with monitoring. · Alloy blades (carbide): Very brittle, any crack is recommended to be taken out of service. Cracks in carbide propagate extremely quickly and easily lead to complete fracture.     · Stainless steel blades: Best toughness, relatively higher tolerance for surface cracks, but still need caution. · Coated blades: If only the coating is cracked and the substrate is intact, they can continue to be used, but the protective effect of the coating is reduced.   5. Emergency Handling for Cracked Blades   If you must temporarily use a custom blade with a crack, follow these rules:   1. Reduce cutting speed to below 60% of normal. 2. Decrease blade gap and overlap to reduce impact. 3. Stop every 30 minutes to check whether the crack has propagated. 4. Install a protective guard around the blade.   6. How to Prevent Cracks?   · Standardize resharpening: Send back to factory for CNC grinding, control feed rate and cooling to avoid grinding burn. · Optimize heat treatment: Choose suppliers with metallographic inspection capability to ensure adequate tempering. · Select appropriate material: For high-impact conditions, choose high-speed steel or tougher custom slitter blades. · Inspect before installation: Check each new blade's edge and surface with a magnifying glass.   7. Mingbai Technology's Recommendations and Inspection Services   Mingbai Mechanical Tool Technology Co., Ltd. recommends that any crack extending to the edge, or any crack deeper than 0.1 mm, should be taken out of service immediately. For cracks where the depth cannot be determined, you can send the blade back to Mingbai's laboratory for dye penetrant inspection or magnetic particle inspection. We will issue an inspection report clearly marking the crack's location, length, and depth, and give a conclusion of usable or scrap.   Conclusion   Small cracks do not mean immediate be declared worthless, but they should never be taken lightly. Location, depth, working conditions, and material together determine the fate of a cracked blade. When you are unsure, the safest choice is to take it out of service, inspect it, and consult a professional manufacturer. Mingbai Technology is willing to provide crack inspection and risk assessment services for you. Website: www.mingbaiblade.com

In slitting production, slitter blades and circular blades become dull after a period of use, and resharpening is a routine method to restore sharpness. However, many users worry: after a few resharpenings, will the blade be ruined? Will precision suddenly drop significantly? Based on years of resharpening experience, Mingbai Mechanical Tool Technology Co., Ltd. reveals the answer: resharpening itself does not cause a cliff-like drop in precision. What really affects precision is the method of resharpening and the control of resharpening frequency.   1. The Essence of Resharpening: Removing the Worn Layer, Restoring Geometry   The essence of blade dulling is edge wear that rounds the edge or causes micro-chipping. Resharpening removes this fatigue layer through grinding and re-forms a sharp edge geometry. A properly designed precision machine blade has an effective thickness much greater than the amount of wear per single use. In theory, as long as the resharpening method is correct, a blade can be resharpened many times without losing precision.     2. The Real Reasons for a Cliff-Like Drop in Precision   1. Insufficient precision of the resharpening equipment   Using ordinary tool grinders or hand-held grinders cannot guarantee edge angle, concentricity, or flatness. One incorrect resharpening can worsen the radial runout of a blade from 0.005 mm to 0.03 mm, causing precision to collapse instantly.     2. Not controlling the amount of material removed per sharpening   If the amount removed each time is too large, for example, exceeding 0.2 mm, it changes the blade's outer diameter, causing mismatch in the gap and overlap between upper and lower blades, affecting cut quality.   3. Not resharpening paired blades together   For upper and lower circular blades used as a pair, if only one is resharpened and the other remains unchanged, the difference in outer diameter between the two will the original gap setting.   4. Exceeding the allowable number of resharpenings   Each alloy blade or stainless steel blade has a certain blade body thickness. When the cumulative material removal approaches 10% to 15% of the blade body thickness, the blade rigidity decreases, and further resharpening may cause deformation or cracking.   3. Precision Can Be Maintained After Correct Resharpening   Using CNC precision grinders and factory resharpening performed according to specifications, blade precision can be almost completely restored:   · Edge angle: restored to within ±0.5° of the original factory specification · Concentricity: still controllable within 0.005 mm · Surface finish: can be restored to Ra ≤ 0.2 μm   Mingbai Technology's data shows that a custom blade correctly resharpened 3 to 5 times can still maintain more than 90% of the cutting quality and life of a new blade.   4. How to Avoid Precision Loss Caused by Resharpening?     1. Choose professional factory resharpening   Do not use angle grinders or belt sanders for on-site sharpening. Factory resharpening with five-axis CNC grinders is necessary to guarantee angle and runout.     2. Control the amount of material removed per sharpening   The amount removed per resharpening should be controlled between 0.05 mm and 0.10 mm, removing only the worn layer. Do not remove too much.     3. Establish a resharpening record   Keep a record for each slitter blade of the cumulative number of resharpenings and cumulative material removed. When the cumulative removal approaches 10% of the blade thickness, consider replacing the blade.   4. Resharpen paired blades together   Upper and lower blades should be sent for resharpening as a pair, or ensure the outer diameters match after resharpening.   5. Reset the gap after each resharpening   After each resharpening, because the outer diameter changes slightly, you must  measure the side gap between upper and lower blades with a feeler gauge and adjust accordingly.   5. When Should You Stop Resharpening?   When the following conditions occur, the blade is near the end of its life and should be replaced:   · The cumulative number of resharpenings exceeds 5 to 6 times, depending on the original thickness. · After resharpening, the edge still has visible chipping or cracks. · After resharpening and installation, runout still exceeds tolerance, for example, above 0.01 mm. · The blade shows overall deformation or end face wear.   6. Mingbai Technology's Resharpening Services   Mingbai Mechanical Tool Technology Co., Ltd. provides professional factory resharpening services. Each circular blade, alloy blade, or custom slitter blade comes with an inspection report after resharpening, showing before-and-after comparison of angle, runout, and edge radius. We guarantee that precision after resharpening is no less than 95% that of a new blade.     7. Case Study   An auto parts factory continuously resharpened a slitter blade 5 times, removing 0.08 mm each time. After the fifth resharpening, the cut quality still met requirements, and the cumulative life reached 2.8 times that of a new blade. In contrast, another blade from the same factory that was sharpened on-site with an angle grinder was ruined in one go.   Conclusion   Resharpening does not cause a cliff-like drop in blade precision. Incorrect resharpening does. As long as you use a professional manufacturer, control the material removal amount, and keep a record of the number of resharpenings, a custom blade can be resharpened many times, achieving a total life of 2 to 3 times that of a new blade. Mingbai Technology is willing to be your partner in managing the entire life cycle of your blades. Website: www.mingbaiblade.com

When customizing custom blades, circular blades, or slitter blades, many users express a vague but very important requirement: "the feel should be light" or "it should cut smoothly." However, cutting feel is a subjective concept that varies greatly among different operators. If this feeling cannot be translated into quantifiable technical parameters, it is difficult for the manufacturer to precisely meet your needs. Mingbai Mechanical Tool Technology Co., Ltd. provides you with a practical method to convert cutting feel into engineering language.   1. What Is Cutting Feel?   Cutting feel is the state of the cutting process that an operator perceives through a combination of hearing, touch, and vision during equipment operation or manual cutting. A good cutting feel typically：the cutting sound is stable and low-pitched, the feed resistance is uniform, the cut edge is smooth and burr-free, and no vibration is transmitted to the handle or control panel.   2. Converting Cutting Feel into Quantifiable Parameters     Lightness corresponds to edge sharpness. A light cutting feel means low cutting resistance, which mainly depends on the edge angle and edge radius of precision machine blades. The smaller the edge angle, for example 15 to 20 degrees, the lighter and faster the cutting. The smaller the edge radius, for example no more than 0.005 millimeters, the easier the penetration. When describing to the manufacturer, instead of saying "light," say "edge angle 18 degrees plus or minus 0.5 degrees, edge radius no more than 0.005 millimeters, surface polished to Ra no more than 0.2 micrometers." Smoothness corresponds to surface finish and coating. A smooth cutting feel means no hesitation or stickiness, which depends on the surface finish and friction coefficient of the blade. The smoother the surface, the more smoothly chips are evacuated. DLC or molybdenum disulfide coatings can significantly reduce the friction coefficient. When describing to the manufacturer, instead of saying "smooth," say "mirror polish on the edge and rake face, Ra no more than 0.1 micrometers, DLC coating recommended."     No vibration corresponds to blade precision and dynamic balance. A vibration-free cutting feel means a stable cutting process, which depends on the concentricity, flatness, and dynamic balance grade of circular blades. When concentricity is no more than 0.005 millimeters, radial runout is small. The dynamic balance grade should reach G2.5 or higher. When describing to the manufacturer, instead of saying "no vibration," say "concentricity no more than 0.003 millimeters, dynamic balance grade G2.5, runout inspection report provided for each blade."     3. Using Trial Cut Samples Instead of Verbal Descriptions   The most accurate way to communicate is to provide a "cutting feel standard sample." You can take a piece of material that feels ideal to you, meaning material that has been cut with a blade you are satisfied with, mark the cut edge with a label saying "satisfactory feel," and then send it to the manufacturer, asking them to reverse-engineer the blade parameters based on this cut edge effect. Mingbai Technology can reverse-engineer the edge angle, passivation value, and surface finish from the cut edge morphology of the sample you provide, achieving precise replication.     4. Describing Working Conditions and Letting the Manufacturer Calculate for You   If you are not familiar with technical terms such as angle and radius, you can describe the working conditions in detail, and Mingbai engineers will calculate the optimal parameters for you. Information to provide includes: material type, grade, and thickness; equipment type, whether manual or automatic, and speed range; specific description of cutting feel, for example "my wrist does not get tired when cutting thick plates" or "the handle does not go numb at high speed"; and a comparison of current satisfactory or unsatisfactory cutting feel.   5. Common Cutting Feel Problems and Corresponding Parameter Adjustments   When the cutting feel problem is heavy and laborious cutting, the possible cause is an excessively large edge angle. You should ask the manufacturer to reduce the wedge angle by 2 to 3 degrees and reduce the edge radius.   When the cutting feel problem is stickiness or stringing, the possible cause is a rough surface or missing coating. You should ask the manufacturer for mirror polishing and the addition of a DLC coating.   When the cutting feel problem is strong vibration or hand numbness, the possible cause is poor concentricity or bad dynamic balance. You should ask the manufacturer for concentricity no more than 0.005 millimeters and a G2.5 dynamic balance grade.   When the cutting feel problem is a sharp, piercing sound, the possible cause is an excessively small clearance angle or improper gap. You should ask the manufacturer to increase the clearance angle by 2 degrees and recalibrate the gap.   When the cutting feel problem is large burrs on the cut edge, the possible cause is a dull edge or uneven angle. You should ask the manufacturer to reduce the edge radius and check angle uniformity.   6. Mingbai Technology's Feel Replication Service   Mingbai Mechanical Tool Technology Co., Ltd. offers a special service called Feel Replication. You simply send an old blade with satisfactory cutting feel or a cut edge sample, and our engineers use coordinate measuring machine measurements, profilometer analysis, and cutting tests to reverse-engineer the complete blade parameters and produce identical custom slitter blades. This service has helped hundreds of customers solve the problem of "the feel changes when I change suppliers."     7. Case Study   A leather cutting workshop that performed manual cutting had operators who were extremely sensitive to cutting feel. After their original source of circular blades was discontinued, they tried three different suppliers and were unsatisfied with all of them, saying the blades were too heavy and did not follow the hand. Mingbai Technology engineers conducted on-site testing and measured the original blade's edge angle at only 16 degrees and edge radius at only 0.003 millimeters. After reproduction according to these parameters, the cutting feel was completely restored, and the operators said, "This is the feeling."   Conclusion   Cutting feel is not a mystery; it is a quantifiable engineering parameter. As long as you can communicate with the manufacturer using the four terms of angle, radius, surface finish, and concentricity, or directly provide a sample, you can have custom blades that perfectly replicate the cutting feel you desire. Mingbai Mechanical Tool Technology Co., Ltd. is willing to be the translator for your cutting feel requirements. Website: www.mingbaiblade.com

On slitting production lines, when circular blades, slitter blades, or alloy blades suddenly make unusual noises such as clicking, squeaking, or humming during operation, it is an alarming signal. Many operators first think, "The blade quality is poor." However, based on hundreds of on-site diagnoses, Mingbai Mechanical Tool Technology Co., Ltd. has found that about 60% of unusual noise roots are related to installation, 30% are related to working conditions, and less than 10% are truly material problems. This article helps you quickly identify the source of unusual noises and provides solutions.   1. Three Typical Types of Unusual Noises and Their Corresponding Causes   1. Clicking metal impact sound   This type of sound is usually rhythmic and synchronized with the blade shaft rotation speed. Common causes include: the gap between upper and lower circular blades is too small, causing the edges to rub and squeeze against each other; the blade is eccentrically installed or the fit between the bore and blade shaft is too loose, causing an impact with each rotation; the blade edge has chipping, and the chipped area impacts the material during rotation.     2. Squeaking high-pitched friction sound   This type of sound is continuous and high-frequency. Common causes include: insufficient lubrication and cooling, causing dry friction between the blade and material; the blade clearance angle is too small, causing excessive contact area between the blade body and material; the material is sticky such as self-adhesive labels or aluminum foil, and adhered material rubs between the edge and the material.   3. Humming low-pitched resonance sound   This type of sound changes with rotation speed and suddenly increases at specific speeds. Common causes include: poor dynamic balance of the blade or blade shaft; loose components on the equipment resonating at specific frequencies; inconsistent blade gaps in multi-blade slitting systems.   2. Quick Diagnosis: Is It an Installation Problem or a Material Problem?   Step 1: No-load test   Remove the material and run the blades with no load. If the unusual noise disappears, the problem is with the material or cutting parameters. If the unusual noise persists, the problem is with blade installation or the blade itself.   Step 2: Interchange test   Move the precision machine blade that is making the unusual noise to another normal machine and run it. If the unusual noise follows the blade, the problem may be blade material or manufacturing. If the unusual noise stays with the original machine, the problem is installation or equipment related.   Step 3: Gap and runout inspection   Use a feeler gauge to measure the gap between upper and lower blades. Is it within 5% to 10% of material thickness? Use a dial indicator to measure blade radial runout. Is it 0.005 millimeters or less?     3. Common Installation Problems and Solutions   If the gap is too small, the phenomenon is a slight friction sound even during no-load operation. The solution is to reset the gap to 5% to 10% of material thickness.   If the blade is eccentric, the phenomenon is a click sound once per rotation. The solution is to check the fit between the bore and blade shaft and clean the mounting surfaces.   If the blade shaft is bent, the phenomenon is excessive runout with unusual noise increasing with speed. The solution is to repair or replace the blade shaft.   If the nut is loose, the phenomenon is intermittent sound. The solution is to tighten with a torque wrench to the standard torque value.   If the spacer has poor parallelism, the phenomenon is blade tilt with single-side contact. The solution is to replace with a high-precision spacer.   4. Common Material or Blade Problems and Solutions   If the edge is chipped, the phenomenon is an impact sound when the chipped position rotates into contact. The solution is to send back to the factory for resharpening or replace the blade.     If the hardness is uneven, the phenomenon is sound varying in intensity. The solution is to check heat treatment quality and change suppliers.   If the coating is peeling, the phenomenon is gradually increasing friction sound. The solution is to recoat or replace with custom slitter blades.   If the blade is deformed, the phenomenon is excessive axial runout. The solution is to check storage methods and avoid stacking.   5. Working Condition Related Unusual Noises and Adjustments   For large material thickness fluctuations, the blade experiences instantaneous force changes, producing irregular impact sounds. The solution is to stabilize incoming material quality or choose stainless steel blades with better toughness.   For insufficient lubrication, a high-pitched friction sound accompanies heated cut edges. The solution is to increase cutting fluid flow and check nozzle angles.     For excessive speed, a humming resonance sound appears at specific speeds. The solution is to increase or decrease speed by 10% to 15% to avoid the resonance zone.   6. When Can It Be Determined as a Material Problem?   Only after eliminating all the following factors can a material problem be suspected: installation gap, runout, and parallelism are all within specification; the blade has no chipping or deformation; lubrication is sufficient and material is stable; another blade from the same batch produces the same unusual noise; and a blade from another brand eliminates the unusual noise. In this case, contact the supplier for hardness and metallographic testing.   7. Mingbai Technology's Diagnostic Services   Mingbai Mechanical Tool Technology Co., Ltd. provides free remote diagnostic services for unusual noises. Simply record a sound video of the equipment in operation, and our engineers can preliminarily determine the type of unusual noise and possible causes. For complex cases, on-site inspection can be arranged.     Conclusion   Unusual noises from mechanical blades are not mysterious; they are fault signals with observable patterns. Most unusual noises originate from installation or working conditions, not blade material. Follow the steps in this article to check each possibility, and most problems can be resolved quickly. Mingbai Technology is ready to use its professional experience to help you understand the language of your blades. Website: www.mingbaiblade.com

In slitting workshops, a common and puzzling phenomenon is this: the same circular blades or slitter blades that last three months in another factory barely survive six weeks in yours. Many users first think, "This batch of blades is poor quality." However, after tracking and analyzing over a hundred cases, Mingbai Mechanical Tool Technology Co., Ltd. found that more than 70% of short-life cases are not rooted in the blades themselves, but in hidden systemic factors related to equipment, operation, or working conditions. This article reveals six invisible killers.   1. Blade Gap is Close Enough   The gap between upper and lower circular blades is the most sensitive parameter affecting shearing force. Many operators set it by feel and never verify it with a feeler gauge.     · Gap too small: The upper and lower blade edges rub and squeeze against each other, generating micro-cracks. After hours of operation, the edge shows powdery spalling. · Gap too large: The material is stretched and torn rather than sheared, and the edge bears additional impact loads, accelerating wear.   Correct practice: Every time you change blades or materials, use a feeler gauge to measure the blade gap. The general rule is 5% to 10% of material thickness. Use the lower limit for hard, thin materials and the upper limit for soft, thick materials.   2. Runout Never Checked After Blade Installation   The radial runout and axial runout of precision machine blades directly determine wear uniformity. When runout exceeds tolerance, the blade edge at the highest point bears cutting forces several times the average value with each revolution.     · Phenomenon: Edge wear appears wavy, with local regions dulling quickly, shortening overall life. · Standard: After installation, radial runout of alloy blades should be 0.005 mm or less, and axial runout 0.008 mm or less.   Solution: Measure with a dial indicator after installation. If out of tolerance, check whether the blade shaft is bent or if there are burrs in the bore.   3. Treating Sharpness as the Only Standard   To pursue extreme cut quality, some users demand custom blades with edge angles less than 15 degrees. An overly sharp edge lacks sufficient support and is prone to micro-chipping when encountering hard spots or thickness fluctuations in the material.     · Manifestation: Tiny, nearly invisible nicks appear on the edge, then accelerate wear, causing a sudden drop in life. · Data: Reducing the edge angle from 25 degrees to 15 degrees increases sharpness by about 40%, but decreases impact resistance by about 60%.   Mingbai recommendation: Choose a reasonable angle based on the material. Use 25 to 30 degrees for ordinary steel, 18 to 22 degrees for soft metals, and apply micro-passivation with radius of 0.01 to 0.02 millimeters.   4. Neglecting the Importance of Lubrication and Cooling   Dry cutting or insufficient cooling is one of the biggest killers of blade life.     · Tempering risk: When the edge temperature of high-speed steel exceeds 550 degrees Celsius, hardness drops sharply. · Chip adhesion risk: Materials like aluminum and copper adhere to the edge at high temperatures, forming a built-up edge that alters the edge geometry.   Correct practice: Ensure adequate cutting fluid and that it is directed at the cutting entry zone. For high-speed slitting, use oil mist lubrication at 5 to 20 milliliters per hour.   5. Unstable Incoming Material Quality Damages the Blade   If upstream material thickness fluctuates by more than plus or minus 10%, or if the material edge has hard spots, weld marks, or inclusions, even the best stainless steel blades or custom slitter blades cannot withstand it.     · Consequence: The blade suffers instantaneous impact chipping when passing through thick spots or hard points. · Diagnosis: Check whether blade chipping corresponds to the position of material defects.   Solution: Communicate with upstream suppliers to stabilize incoming material quality. If uncontrollable, choose blade materials with better toughness.   6. Improper Blade Re-sharpening Ruins It in One Go   Many users use an angle grinder to sharpen dull slitter blades themselves. This changes the edge angle and causes local tempering, so the blade can never recover its original performance.     · Manifestation: After re-sharpening, the blade dulls again quickly, even worse than before. · Correct practice: Send back to the factory for CNC precision re-sharpening to restore original factory geometry, with the option to reapply coating.   Mingbai Technology's Life Optimization Services   We not only produce high-quality circular blades, alloy blades, and mechanical blades, but also provide:   · On-site diagnosis: Technical engineers visit to inspect equipment precision, installation parameters, and lubrication conditions. · Life tracking: Establish blade usage records and analyze causes of premature failure. · Re-sharpening services: Professional factory re-sharpening to restore more than 95% of original blade performance.   Conclusion   Short blade life is often not because the blade itself is inadequate, but because the usage environment has problems. Inspect gap settings, runout checks, angle selection, lubrication, and incoming material step by step. Most life problems can be solved. Mingbai Technology is willing to provide you with a free on-site condition diagnosis to help you find the true culprit of short life. Website: www.mingbaiblade.com

On the production floor, when the edge of a circular blade, slitter blade, or alloy blade becomes dull, many operators instinctively think, "I will just grind it with a wheel." This type of emergency fix seems to save money and time, but based on a large number of cases, Mingbai Mechanical Tool Technology Co., Ltd. has found that the vast majority of non-professional sharpening actually leads to premature blade failure, with total costs far exceeding those of factory repair. This article calculates the economic balance for you and provides scientific advice.   1. The Hidden Costs of Sharpening It Yourself   1. Changing the edge geometry   When an operator uses a hand-held wheel or angle grinder, there is no way to precisely control the angle. An original wedge angle of 25 degrees might become 30 or 40 degrees, leading to increased cutting resistance and greater heat generation, worse burrs on the material edge or even tearing, and blade life decreasing rather than increasing, with dulling returning quickly.     2. Causing edge tempering   High-speed grinding generates heat, and the localized temperature at the edge may exceed the tempering temperature, approximately 550 degrees Celsius for high-speed steel. Under a microscope, a secondary tempering zone or over-burned zone can be seen, with hardness dropping by 5 to 10 HRC. This damage is irreversible, and the precision machine blade is effectively scrapped.     3. Destroying concentricity and flatness   Hand sharpening cannot guarantee perpendicularity between the blade face and the axis. After installation, runout can exceed 0.05 millimeters, while the standard should be no more than 0.005 millimeters, causing vibration, burrs, and damage to the blade shaft.     4. Safety hazards   Grinding a rotating blade by hand carries a high risk of injury to the hand. Furthermore, the metallic dust generated by grinding is harmful if inhaled into the lungs.   2. The Professional Value of Factory Repair   Factory repair is not simply sharpening. It includes a complete set of processes.   First, cleaning and degreasing are performed using an ultrasonic cleaner to remove oil and adhered material from the blade surface. Then, runout is measured using a dial indicator and alignment tool to assess the amount of deformation and determine the amount of material to be removed.   The core step is CNC precision grinding, using a five-axis CNC grinder to restore the original factory geometry, with accuracy controlled to within plus or minus 0.1 degrees. After that, edge passivation is performed using a brushing or sandblasting process to remove microscopic nicks and prevent early chipping.   If needed, coating restoration can also be done, reapplying the wear-resistant coating using PVD coating equipment. Finally, a coordinate measuring machine and hardness tester perform final inspection to ensure all indicators meet standards.   At Mingbai Technology, a circular blade repaired at the factory can recover more than 95 percent of its original life, and the total life after multiple repairs can reach two to three times that of a new blade.     3. Cost Comparison: Sharpening Yourself vs. Factory Repair   Sharpening yourself appears to have zero direct cost, but it carries enormous hidden risk costs. If the blade is scrapped due to incorrect angle, tempering, or excessive runout, the loss is the full value of the entire blade. Using an alloy blade worth 500 RMB as an example, scrapping it due to self-sharpening results in a loss of 500 RMB, plus the production loss of one to two hours of downtime and the potential risk of operator injury.   In contrast, factory repair typically costs 20 to 35 percent of the price of a new blade. Using the same 500 RMB blade, each repair costs about 150 RMB. The same blade can be repaired three to five times. The total cost of five repairs is 500 RMB for the new blade plus five times 150 RMB for repairs, totaling 1,250 RMB. But the total service life obtained is equivalent to one new blade plus five repair lives, or six times the total life of a single blade. The average cost per use is only 208 RMB.   This calculation does not even include the additional value provided by factory repair: professional geometry for consistent cut quality, coating restoration for extended durability, and inspection reports for each repaired blade. Clearly, the cost per use of factory repair is far lower than the risk cost of sharpening it yourself.     4. In Which Cases Can You Do Simple Treatment Yourself?   In a very limited number of situations, you can perform stone deburring yourself, but the following conditions must be strictly observed:   The edge should have only tiny burrs, with no visible wear land or chipping. Use a fine oilstone of 1000 grit or higher and gently stroke along the original edge angle a few times to remove only the burrs. Do not use any power tools, including bench grinders, angle grinders, or belt sanders. Wear cut-resistant gloves and safety glasses during the operation.   For all other situations, including the edge being visibly rounded, chipped, or the coating peeling or deformed, the blade should be sent back to a professional manufacturer for repair.   5. Mingbai Technology's Repair Services   We provide one-stop factory repair services for circular blades, slitter blades, stainless steel blades, and custom slitter blades:   Fast turnaround: Repair completed and shipped within 48 hours of receiving the blade. Repair report: Each blade comes with before and after comparison data for angle, runout, and edge radius. Coating reapplication: Re-coating with PVD coatings such as TiN, TiAlN, or DLC can be performed as needed. Multiple repairs: The same blade can be repaired three to five times without damaging the substrate. Life guarantee: If a blade fails prematurely due to our repair process, we will replace it with a new blade at no charge.   6. Case Study   An automotive parts factory once used an angle grinder to sharpen its own slitter blades. The operator, wanting to make it sharper, ground it for a few extra seconds, causing localized overheating and tempering. After installation, the edge developed large chips within two hours and even scratched the blade shaft surface, forcing a two-day shutdown for repairs.   After switching to Mingbai's factory repair service, the factory planned its circular blade usage cycle as follows: use the new blade, send back for repair when dull, use again, send back again. On average, each blade was repaired four times, with each repair costing only 25 percent of the price of a new blade. Over one year, total tooling costs decreased by 63 percent, and no equipment accidents caused by improper sharpening occurred.     Conclusion   After a circular blade becomes dull, sending it back to the factory for repair is the true way to save money. Professional equipment, precise angle control, scientific passivation, and optional coating restoration are all things that cannot be done by hand on site. Mingbai Mechanical Tool Technology Co., Ltd. recommends letting professionals handle professional tasks. As long as the blade is not chipped by more than one millimeter, it can be restored to like-new condition through factory repair. Lower cost, better quality, and greater safety no matter how you calculate it. Website: www.mingbaiblade.com

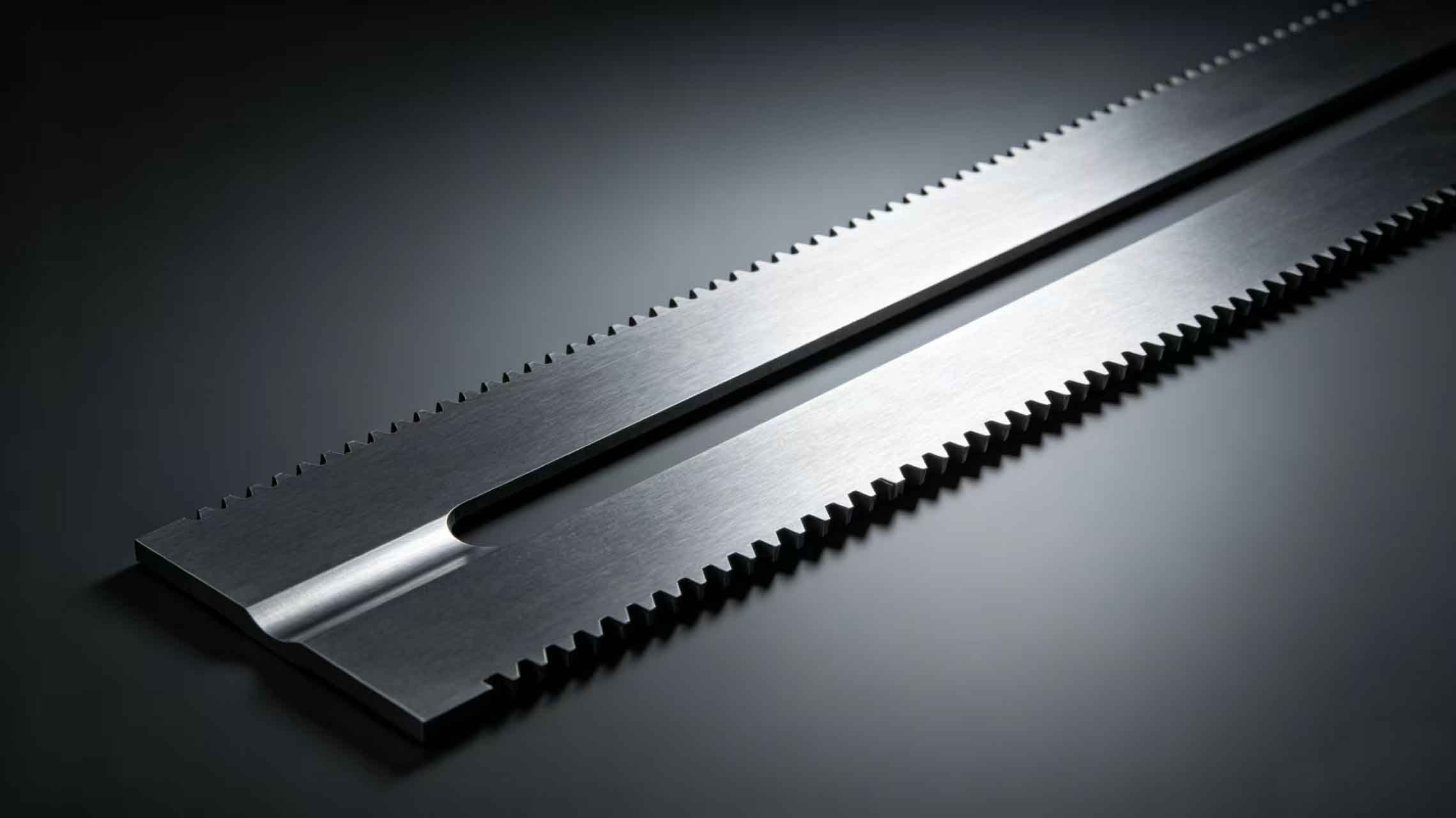

The answer is a definite yes. In fact, given the same material, the level of heat treatment directly determines the maximum durability of slitter blades. Many users find that circular blades or alloy blades made from the same material can have service lives differing by several times depending on the manufacturer, and the root cause is often the heat treatment process. Mingbai Mechanical Tool Technology Co., Ltd., specializing in custom blades and precision machine blades, explains in depth how heat treatment affects blade durability.   1. Heat Treatment Changes the Blade's "Genetics"   Through heating, holding, and cooling, heat treatment alters the internal metallurgical structure of the steel (such as martensite, carbide distribution, retained austenite, etc.). For slitter blades, heat treatment directly determines three key properties:   · Hardness: The edge's ability to resist wear. · Toughness: The edge's ability to resist impact chipping. · Fatigue resistance: The ability to remain intact under cyclic stress.   Balancing these three properties is the core challenge that heat treatment processes must address.     2. Typical Failure Modes Caused by Poor Heat Treatment   1. Excessive quenching temperature or too long soaking time Phenomenon: Coarse grain size, carbide clustering. The blade becomes extremely hard but brittle, leading to large-edge chipping during shearing; the fracture surface appears coarse-grained. Consequence: Alloy blade life drops sharply, and chipping can occur even on first use.     2. Insufficient quenching temperature or too slow cooling rate Phenomenon: Incomplete transformation to martensite, with excessive pearlite or bainite. Blade hardness is low, and the edge wears and rounds quickly. Consequence: Circular blades produce increasing burrs after a few hundred meters of shearing, requiring frequent blade changes.   3. Inadequate tempering Phenomenon: Quenching stresses are not fully relieved, leaving micro-cracks inside the blade. Under impact loads during use, cracks propagate, leading to complete blade fracture. Consequence: Slitter blades may suddenly shatter, damaging equipment.   4. Decarburization or oxidation Phenomenon: No protective atmosphere during heat treatment, causing carbon loss from the blade surface. Soft spots form with locally insufficient hardness. Consequence: Stainless steel blades or custom slitter blades develop "soft zones" on the edge, leading to uneven wear and wavy cut edges.   3. Characteristics of High-Quality Heat Treatment   Mingbai Technology uses vacuum protective atmosphere heat treatment with full computer temperature control, ensuring every precision machine blade achieves its ideal microstructure:     · Precise temperature control: Quenching temperature fluctuation ≤ ±5°C, avoiding overheating or underheating. · Adequate tempering: High-speed steel blades undergo 3-4 tempering cycles to fully relieve stress and transform retained austenite. · Cryogenic treatment: For high-precision custom blades, an additional -150°C cryogenic step further increases hardness and dimensional stability. · Hardness gradient control: Edge hardness reaches HRC60-63, while blade body hardness is HRC45-50, balancing wear resistance and impact resistance.     4. How to Judge Heat Treatment Quality?   After receiving blades, users can perform preliminary checks using the following methods:   1. Spark test: Sparks from grinding should be consistent across blades from the same batch. Unusually scattered sparks or different colors indicate non-uniform structure. 2. Hardness test: Use a portable Leeb hardness tester, measuring at both ends and the middle of the blade. Deviation ≤ ±1 HRC is acceptable.     3. Metallographic sampling (professional laboratory): Observe martensite needle length and carbide distribution. Grain size should be ≥ grade 9. 4. Fracture observation: After chipping, examine the fracture. A fine porcelain-like appearance is normal; coarse or bright granular appearance indicates overheating.   5. Mingbai Technology's Heat Treatment Guarantee   We develop dedicated heat treatment process curves for each product, including circular blades, slitter blades, alloy blades, and retain complete process records. From each batch, test samples undergo:   · 100% Rockwell hardness inspection · Spot-check metallographic examination · Impact toughness testing (for specific models)     Conclusion   Heat treatment is the "invisible" key step in blade manufacturing. It is not as intuitive as sharpening, but it determines the intrinsic quality of the blade. Mingbai Mechanical Tool Technology Co., Ltd. adheres to aerospace-grade heat treatment standards to ensure every custom blade delivers exceptional durability.   If you are unsatisfied with the life of your current blades, please send samples for our heat treatment process analysis. Let us help extend your blade life at the "genetic" level. Website: www.mingbaiblade.com

In metal slitting operations, the hardness of circular blades is a core factor affecting cut quality and blade life. Excessive hardness makes the blade brittle and prone to chipping; insufficient hardness causes rapid edge wear and frequent downtime for blade changes. Mingbai Mechanical Tool Technology Co., Ltd. produces slitter blades, alloy blades, stainless steel blades, and various custom blades. Based on years of material application data, we provide a practical guide to hardness selection.   1. Basic Concept of Blade Hardness   Blade hardness is typically expressed using the Rockwell hardness scale (HRC). Higher values indicate harder materials with better wear resistance, but lower impact toughness. For precision machine blades, the hardness range is generally between HRC45 and HRC65.   · HRC < 55: Excellent toughness but poor wear resistance, suitable for soft materials or high-impact conditions. · HRC 55-60: Balances toughness and wear resistance, the most commonly used range. · HRC 60-65: High wear resistance with increased brittleness, suitable for hard materials and high-speed slitting of thin materials.   2. Recommended Hardness for Common Sheared Materials   1. Ordinary Carbon Steel (Q235, SPCC, DC01, etc.)   · Recommended hardness: HRC58-62 · Recommended blade types: Circular blades or slitter blades, material Cr12MoV or D2. · Note: Carbon steel has low hardness but some toughness; medium hardness blades provide a balance of sharpness and life.   2. Stainless Steel (304, 316, 430, etc.)   · Recommended hardness: HRC56-58 (Note: Stainless steel work-hardens severely; the blade needs some toughness.) · Recommended blade types: Stainless steel blades, material cobalt-bearing high-speed steel (M35, M42) or powder steel. · Note: Hardness should not exceed HRC60, otherwise the edge is prone to micro-chipping. Pair with TiAlN coating for better wear resistance.   3. Silicon Steel (Electrical Steel)   · Recommended hardness: HRC60-63 · Recommended blade types: Alloy blades (carbide) or powder metallurgy high-speed steel. · Note: Silicon steel is hard and brittle, requiring high wear resistance. The edge should be micro-passivated to prevent chipping.   4. Non-Ferrous Metals such as Copper and Aluminum   · Recommended hardness: HRC55-58 · Recommended blade types: Precision machine blades with mirror polish and anti-stick coating. · Note: Soft metals do not require high hardness but need sharp edges and low-friction surfaces. Excessively high hardness反而 promotes adhesion.   5. High-Strength Steel (HSLA, Wear-Resistant Steel)   · Recommended hardness: HRC58-60 (combined with toughness) · Recommended blade types: Custom slitter blades made of powder high-speed steel with tough coating. · Note: High-strength steel has both hardness and impact loads; use medium hardness and focus on impact resistance.   6. Composites, Fiberglass Boards   · Recommended hardness: HRC62-65 (carbide is best) · Recommended blade types: Alloy blades (YG6X, KD20) or PCD blades. · Note: Materials are highly abrasive, requiring extreme wear resistance. Carbide blades are the first choice.     3. Rules of Thumb for Hardness Selection   1. The harder the material, the higher the blade hardness should be (but not exceeding HRC65). 2. The thicker the material and the greater the impact, the lower the blade hardness should be (increase toughness). 3. For high-speed slitting, slightly higher hardness blades can be used (reduce wear). 4. Thin materials (<0.5 mm) require higher hardness because the edge must stay extremely sharp. 5. Coatings can compensate for insufficient hardness: for example, an HRC58 substrate with TiAlN coating can achieve wear resistance comparable to HRC62.   4. Mingbai Technology's Hardness Customization Services   We provide precise hardness control from HRC45 to HRC65. Each batch of circular blades comes with a hardness inspection report. For special conditions, we can design gradient hardness blades: high hardness at the edge (HRC60-62) and lower hardness on the blade body (HRC45-50), achieving "hard outside, tough inside."     5. How to Verify Whether the Hardness is Appropriate?   · Too soft: The edge wears and rounds quickly, burrs on cut edges increase progressively, frequent blade changes.     · Too hard: Small chips appear on the edge, "clicking" noise during cutting, tiny sawtooth on the material edge.     · Appropriate: Stable blade life, smooth cut edges, no abnormal chipping.   Conclusion   Selecting the appropriate hardness for circular blades is a key step to improve slitting efficiency and reduce costs. Do not blindly pursue high hardness, nor underestimate the need for toughness. Mingbai Mechanical Tool Technology Co., Ltd. can recommend the optimal hardness solution for your material, thickness, and operating conditions at no charge. Please contact our technical team. Website: www.mingbaiblade.com

During metal slitting processes, chipping of slitter blades is one of the most frustrating failure modes. Chipping not only interrupts cutting and scraps material but can also damage the blade shaft and equipment. Many users first think "poor blade quality," but Mingbai Mechanical Tool Technology Co., Ltd., based on years of on-site diagnostics, finds that the vast majority of chipping is related to selection, installation, or operation. This article systematically analyzes six causes of chipping and provides preventive measures.   1. Improper Blade Material and Hardness Selection Different materials require circular blades or alloy blades with different hardness and toughness.     · Excessive hardness: When blade hardness exceeds HRC62, wear resistance is good but impact resistance drops sharply. When cutting materials with impurities or large thickness fluctuations, the edge is prone to chipping. · Insufficient hardness: The edge first wears and dulls, then collapses under high cutting forces, manifesting as large-area chipping. · Solution: Choose custom blades with hardness matched to the material being cut. For example, HRC58-60 for silicon steel, HRC56-58 with cobalt addition for stainless steel to improve toughness.   2. Blade Gap Set Too Small   The gap between upper and lower slitter blades is a key parameter regulating shear force.   · Phenomenon: When the gap is less than 3% of material thickness, the upper and lower blade edges squeeze and rub against each other, generating micro-cracks. After continuous operation, micro-cracks propagate, leading to small edge spalls. · Solution: Set the gap at 5%-10% of material thickness. Use the upper limit for hard and brittle materials, lower limit for soft and tough materials. Always re-verify with a feeler gauge after each blade change.   3. Blade Edge Angle Too Sharp   Some users demand precision machine blades with edge angles less than 15° to pursue ultimate cut quality.   · Phenomenon: An excessively small wedge angle provides insufficient edge support. When encountering hard spots or material joints, the edge "chips off" like a knife blade. · Solution: For ordinary steel, an edge angle of 25°-30° is recommended. For difficult-to-cut materials like stainless steel, micro-passivation (R=0.01-0.02mm) can be applied to maintain cut quality while preventing chipping.     4. Eccentric Blade Installation or Excessive Runout   The bore of circular blades fits too loosely on the shaft, or the shaft itself is bent.   · Phenomenon: For each revolution of the blade, the edge at the eccentric high point bears impact loads, leading to fatigue chipping. Inspection reveals chipping positions equally spaced around the circumference. · Solution: Measure shaft radial runout before installation (should be ≤ 0.005 mm). Choose high-concentricity custom slitter blades with bore tolerance according to H7.     5. Abnormal Incoming Material   Material thickness fluctuations exceed ±10%, or the material edge has weld marks or inclusions.   · Phenomenon: Instantaneous cutting force spikes when the blade passes through thick or hard spots, exceeding the edge's limit and causing direct fracture. · Solution: Communicate with upstream suppliers to stabilize incoming material quality. If unavoidable, choose stainless steel blades with better toughness or carbide substrates with tough coatings.     6. Insufficient Lubrication and Cooling   Dry cutting or insufficient coolant flow causes frictional heat buildup.   · Phenomenon: Edge temperature exceeds the tempering temperature (approx. 550°C for high-speed steel), causing local softening, and the material then tears off a piece of the edge. · Solution: Ensure adequate coolant coverage of the cutting zone. Use oil mist lubrication or minimum quantity lubrication (MQL) with a flow rate of 5-20 ml/h.   Mingbai Technology's Anti-Chipping Measures   Mingbai Mechanical Tool Technology Co., Ltd. helps customers prevent chipping from the design stage:   · Gradient hardness blades: High hardness at the edge (HRC60), lower hardness on the blade body (HRC40-45), balancing wear resistance and impact resistance. · Micro-passivation treatment: Controlled passivation of the edge before shipment to eliminate microscopic nicks. · Material recommendation service: Recommend the most suitable alloy blades, stainless steel blades, or slitter blades based on your operating conditions.   Conclusion   Chipping is not necessarily a blade quality problem; it is often a system matching error. Inspect gap, angle, installation, and material step by step – most chipping can be avoided. Mingbai Technology is committed to helping you stay away from chipping troubles with professional technical support. Website: www.mingbaiblade.com

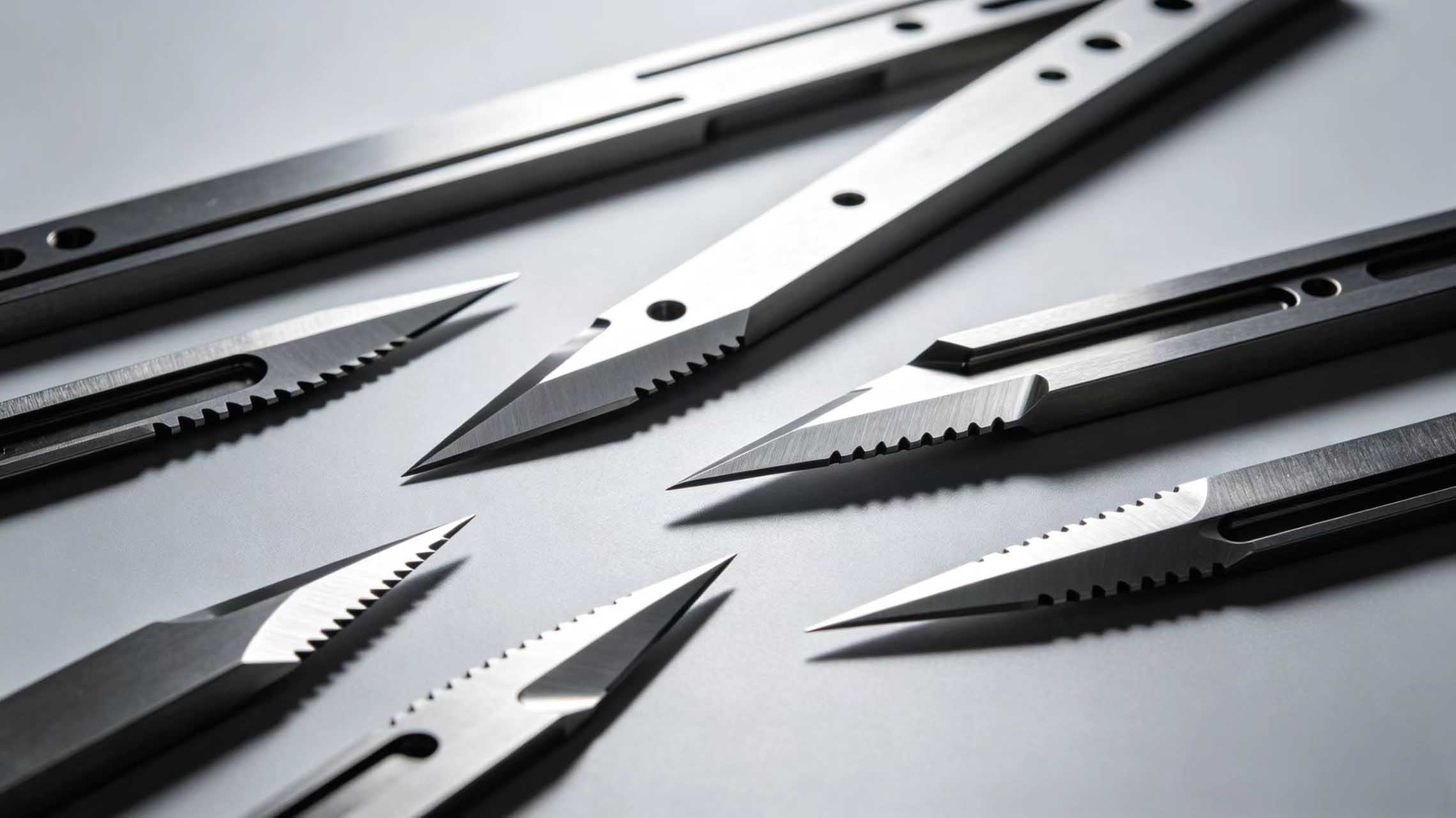

When customizing custom blades, circular blades, or slitter blades, a seemingly minor dimensional deviation can prevent installation, degrade cut quality, or even damage equipment. Mingbai Mechanical Tool Technology Co., Ltd. processes hundreds of custom orders each year and has identified the following six dimensional parameters as the most common sources of customer errors or oversights. Understanding these pitfalls will make your customization process smoother and your blades more suitable.   1. Bore Tolerance The bore is the critical interface with the blade shaft. Too tight, and installation is difficult or impossible; too loose, and the blade becomes eccentric, causing vibration and uneven cutting.   · Common mistake: Customer provides only the bore diameter value without specifying tolerance. For example, "bore Φ50mm" is ambiguous; it needs to specify H7 (+0.025/0), g6 (-0.009/-0.025), or another fit class. · Correct practice: Provide the actual outer diameter of the shaft and the fit requirement. Mingbai Technology recommends: for precision machine blades, bore tolerance according to H6 or H7, with shaft clearance controlled at 0.01-0.03 mm.   2. Blade Outer Diameter and Concentricity The outer diameter determines the cutting line speed, while concentricity (coaxiality between the bore and outer diameter) directly affects runout.     · Common mistake: Only providing the outer diameter value while ignoring concentricity requirements. As a result, the blade's radial runout exceeds tolerance, causing chatter marks at high speed. · Correct practice: Clearly specify concentricity ≤ 0.005 mm (especially critical for circular blades). Mingbai provides a runout inspection report with each blade.   3. Edge Angle (Bevel Angle) Edge angle includes wedge angle, rake angle, and clearance angle. Different materials require different angle combinations.     · Common mistake: Simply stating "sharp" or "durable" without specific angle values. The manufacturer can only rely on experience, which may not match your operating conditions. · Correct practice: Provide specific angle values, e.g., "wedge angle 25°±1°, clearance angle 8°±0.5°." If unsure, entrust Mingbai Technology to recommend based on your material.   4. Blade Thickness and Flatness Thickness affects blade strength and slitting width accuracy. Insufficient flatness causes axial runout.     · Common mistake: Specifying thickness while ignoring flatness requirements, or setting unnecessarily tight thickness tolerances (e.g., ±0.005 mm) that drive up cost. · Correct practice: General thickness tolerance ±0.01 mm is sufficient, with flatness ≤ 0.005 mm. For slitter blades, the parallelism of the two end faces needs special attention.   5. Edge Radius (Passivation Value) Edge radius distinguishes between "ultra-sharp" and "micro-passivated" edges, directly affecting life and cut quality.   · Common mistake: Never mentioning edge radius, defaulting to sharpest edge, which may cut thin materials well but cause chipping on thick materials. · Correct practice: Clearly specify the R value, e.g., "edge radius R ≤ 0.005 mm" (ultra-sharp) or "R = 0.015-0.02 mm" (micro-passivated). Custom slitter blades often require micro-passivation.   6. Mounting Hole or Keyway Position For non-circular mechanical blades or circular blades requiring positioning, the angle and position accuracy of mounting holes and keyways are critical.     · Common mistake: Only providing hole center distance without specifying angular tolerance or datum surface. As a result, the edge direction deviates from design after installation. · Correct practice: Use a blade end face or outer diameter as the datum, and specify positional tolerance for holes (e.g., Φ0.02 mm). Providing a 2D CAD drawing is best.   Mingbai Technology's Customization Guarantee To avoid the above errors, Mingbai Mechanical Tool Technology Co., Ltd. offers:     · Custom parameter checklist: Before ordering, we send a standard form to confirm bore, outer diameter, thickness, angles, edge radius, flatness, etc. · Drawing review service: Free inspection of customer-supplied drawings to identify missing or conflicting parameters. · First-article inspection report: A CMM measurement report before delivery to ensure all dimensions conform to agreement.   Conclusion When customizing circular blades or slitter blades, details determine success. Bore, concentricity, edge angle, thickness, edge radius, and mounting holes – these six parameters are most prone to error and most worth an extra minute of your attention. Mingbai Technology is committed to making your "customization" worry-free through rigorous manufacturing processes. Website: www.mingbaiblade.com

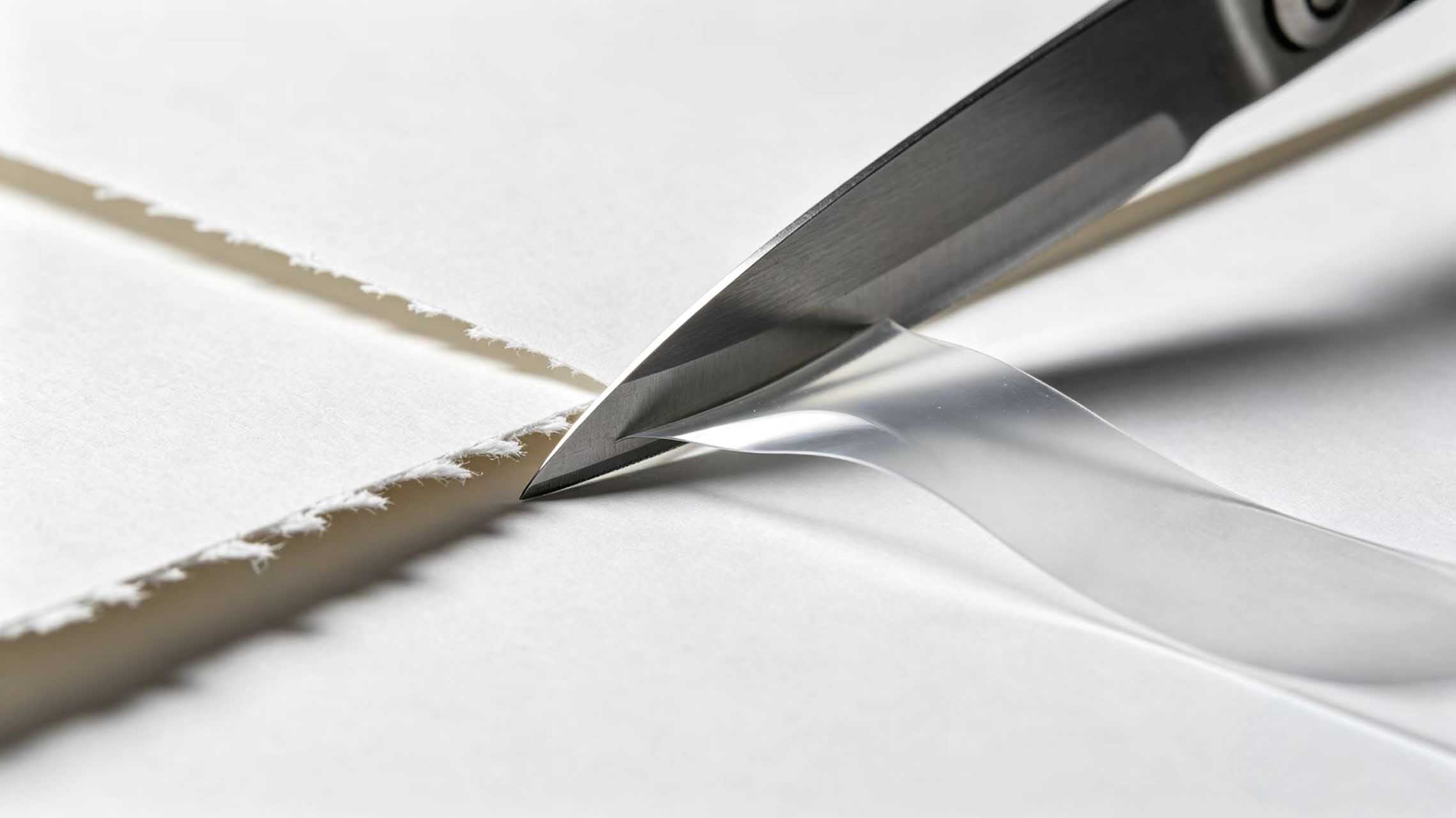

In cross-cutting or slitting operations for paper, film, and self-adhesive labels, the bevel angle (edge angle) of circular blades or slitter blades directly affects cut quality, blade life, and dust generation. Many users follow metalworking experience when selecting blade angles, resulting in paper fuzz, film stringing, or even blade chipping. Mingbai Mechanical Tool Technology Co., Ltd., based on the characteristics of paper and film materials, explains the ideal bevel angle range and selection criteria.   1. What Is the Bevel Angle? In slitting blades, the bevel angle typically refers to the edge wedge angle (the angle between the two edge faces). For custom blades, this angle determines the balance between sharpness and edge strength. A smaller angle is sharper, with lower cutting resistance but a more fragile edge. A larger angle is stronger but may crush the material edge during cutting. 2. Ideal Bevel Angle for Paper Slitting Paper consists of plant fibers with directional properties (different longitudinal and transverse strength) and is sensitive to burrs.   · Ordinary printing paper, cultural paper (60-120 g/m2): Recommended bevel angle 21°-24°. This angle cleanly cuts fibers without fuzzing. Too small (<18°) leads to rapid edge wear; too large (>28°) causes indentation and paper dust. · Kraft paper, paperboard (200-400 g/m2): Recommended bevel angle 25°-28°. Thick paper requires greater edge support to prevent chipping. Also increase clearance angle appropriately to 10°-12° to reduce friction. · Carbon paper, thermal paper: Recommended bevel angle 18°-20°. These materials have fragile coatings and require extremely sharp blades. Precision machine blades with mirror polishing are recommended.     3. Ideal Bevel Angle for Film Slitting Plastic films have ductility and heat sensitivity, tending to stretch or melt during cutting.   · PE, PP films (20-100 μm): Recommended bevel angle 16°-19°. Soft films require a very sharp edge to minimize stretching deformation. Clearance angle of 8°-10° and DLC coating to prevent adhesion. · PET, BOPP films (12-50 μm): Recommended bevel angle 18°-22°. These materials have high strength but generate static dust. Moderate sharpness with TiN or TiAlN coating works best. · Polyimide film (PI, for flexible circuits): Recommended bevel angle 20°-23°. The material is wear-resistant and expensive, requiring both sharpness and durability. Custom slitter blades with micro-passivation are recommended.     4. Bevel Angle for Self-Adhesive Labels / Composites Self-adhesive labels consist of face material, adhesive layer, and release liner. The adhesive tends to stick to the blade during cutting.   · Self-adhesive labels: Recommended bevel angle 22°-25°. Slightly larger than plain paper, and must use anti-stick coating (Teflon or nickel-fluorine). The edge surface needs polishing to Ra ≤ 0.1 μm. · Aluminum-plastic composite film: Recommended bevel angle 25°-30°. The metal layer increases wear, requiring a stronger edge. Carbide circular blades are recommended.     5. General Principles for Bevel Angle Selection 1. The thinner and softer the material, the smaller the bevel angle (e.g., 12 μm capacitor film uses 15°). 2. The thicker and harder the material, the larger the bevel angle (e.g., 400 g/m2 paperboard uses 28°). 3. For high-speed slitting, a slightly smaller bevel angle can be used (reduces cutting heat); for low-speed or manual cutting, a slightly larger angle may be acceptable. 4. Coatings can compensate for insufficient bevel angle: for example, a 22° angle with DLC coating can achieve cutting performance similar to 18° while maintaining edge strength.   6. How to Verify the Ideal Bevel Angle? · Paper: Check if the cut edge is smooth and free of paper dust. Observe fiber cross-sections under magnification for clean cuts. · Film: Stretch the cut edge to see if there are uncut filaments. Feel for burrs. · Self-adhesive labels: Observe whether adhesive is squeezed out of the cut and contaminates the blade.   Mingbai Technology's Customization Services We offer bevel angle customization for circular blades, slitter blades, and CNC machined blades. Simply provide the material type, thickness, and slitting speed, and our engineers will calculate the optimal bevel angle and provide an edge angle inspection report. Each custom blade can be ground to ±0.5° accuracy per your requirements.     Conclusion In paper and film converting, there is no "universal bevel angle." The correct approach is to select the matching edge angle based on specific material characteristics. Mingbai Mechanical Tool Technology Co., Ltd., with its material expertise and precision grinding technology, is dedicated to helping you achieve burr-free, dust-free perfect slitting. Website: www.mingbaiblade.com

On slitting production lines, abnormal vibration of slitter blades or circular blades is a dangerous signal. Vibration not only leaves wavy marks and burrs on the material edge but also accelerates blade wear, damages blade shaft bearings, and can even cause blade cracking accidents. Many operators mistakenly believe the equipment is aging, but in fact, most vibration of slitter blades originates from several quickly identifiable causes. Mingbai Mechanical Tool Technology Co., Ltd., based on field experience, helps you diagnose the root causes of vibration and provides practical methods to stabilize your blades.   1. Common Causes of Slitter Blade Vibration   1. Improper blade gap or overlap settings   ·Too small a gap: upper and lower blades rub and squeeze each other, generating periodic impact. ·Too large a gap: material is stretched in the cutting zone and then suddenly released, causing lateral blade oscillation. ·Excessive overlap: blades cut too deeply, cutting resistance surges, forcing the blade to deflect sideways.     2. Excessive blade or blade shaft runout   · Poor concentricity between the bore and outer diameter of circular blades (>0.01mm) creates a radial impact per revolution. ·Bent blade shaft or worn spindle bearings cause excessive axial runout after blade installation. · Blade retaining nuts not torqued properly, allowing blade to micro-move on the shaft.   3. Asymmetric blade geometry or uneven wear   · Local chipping or wear land on the edge creates unbalanced forces during rotation. · Asymmetrical grinding of clearance angles on both sides of the blade causes unilateral load.   4. Insufficient equipment structural rigidity   · Blade holder overhang too long, lacking support. · Loose locking mechanisms cause high-frequency chatter under cutting forces.   5. Material or operating condition changes   · Large thickness fluctuations or high hardness at material joints cause instantaneous impact on the blade. · Insufficient lubrication or clogged cutting fluid nozzles cause friction heat and blade thermal deformation.   2. How to Diagnose the Source of Vibration?   With the machine stopped, check in the following order:   1. No-load sound test: Remove material and run blades at no load. If vibration persists, the problem is with the blade or shaft; if quiet, the problem is with gap or material. 2. Dial indicator measurement: Measure radial runout and axial runout of the blade outer diameter. Precision machine blades require radial runout ≤ 0.005 mm and axial runout ≤ 0.008 mm.     3. Marking test: Apply marking ink to the upper and lower blade edges, press onto white paper, and observe whether the impression is uniform and continuous. Intermittent impression indicates uneven gap. 4. Frequency analysis: Vibration frequency matching blade shaft rotation frequency → eccentric blade or shaft; frequency an integer multiple of rotation frequency → multiple chipped edges.     3. Five Measures to Stabilize Slitter Blades   1. Recalibrate blade gap and overlap   · Use a feeler gauge or laser alignment tool to set the gap at 5%-10% of material thickness. Start from the minimum and increase gradually until burr-free and vibration-free. · Control overlap at 30%-50% of material thickness. Use the lower limit for thin materials, upper limit for thick materials.   2. Ensure blade and blade shaft precision   · Before installing custom blades, check shaft runout with a dial indicator. If out of tolerance, replace spindle bearings or grind the journal. · Choose Mingbai Technology high-concentricity circular blades (outgoing report guarantees concentricity ≤ 0.003 mm). · Use a torque wrench to tighten blade nuts in a crisscross sequence; refer to the blade manual for recommended torque values.   3. Optimize blade geometry design   · For vibration-prone conditions, reduce the clearance angle of custom slitter blades by 2°-3° to increase edge support. ·Use unequal tooth pitch or helical edge designs (for specific machine models) to break resonance frequencies.   4. Enhance equipment rigidity   · Shorten blade holder overhang length and add auxiliary support brackets. · Check all locking bolts and replace aged anti-vibration washers.   5. Stabilize operating conditions and lubrication   · Ensure incoming material thickness fluctuation ≤ ±5%. If uncontrollable, choose CNC machined blades with vibration-damping grooves. · Maintain adequate cutting fluid and aim nozzles at the cutting entry zone to remove heat and flush chips.   4. Mingbai Technology's Anti-Vibration Blade Solutions   For vibration-sensitive slitting lines, Mingbai Mechanical Tool Technology Co., Ltd. has developed a dedicated anti-vibration series:   · Uneven clearance edge: Slight variation in edge height along the circumference to break resonance phase locking. · Damping layer composite blade: Polymer damping material embedded inside the blade body to absorb high-frequency vibration. · Balanced blades: Each slitter blade undergoes G2.5 grade dynamic balancing before shipment to eliminate inherent unbalanced forces.     We also provide on-site vibration testing services, using handheld vibration meters to capture frequency spectra, accurately locate vibration sources, and issue optimization reports.   5. Case Study   A battery electrode slitting plant experienced severe vibration of circular blades when speed exceeded 80 m/min, producing serrated cut edges. Mingbai team on-site inspection found: blade shaft radial runout of 0.03 mm (standard 0.005 mm), and blade gap set at only 3% of material thickness. After recommending shaft grinding and adjusting gap to 8%, vibration disappeared, speed increased to 120 m/min, and blade life doubled.   Conclusion   Slitter blade vibration is never "normal." From gap settings and blade precision to equipment rigidity, every link can be a vibration source. Mingbai Mechanical Tool Technology Co., Ltd. not only provides high-quality circular blades, slitter blades, and custom blades, but also serves as your on-site problem diagnostician. Contact us to restore smooth and quiet operation to your slitting line. Website: www.mingbaiblade.com
