When Slitter Blades Produce Sharp Noise During Cutting, Is It a Blade Problem or an Equipment Problem?

In metal slitting operations, a sudden sharp, piercing noise from slitter blades during cutting is an alarming signal. Such noise not only affects the working environment but also often indicates potential issues with the blade or equipment. Many operators struggle to identify the source of the noise, blindly replacing blades or stopping production for inspection, which wastes time and increases costs. Mingbai Mechanical Tool Technology Co., Ltd., based on extensive on-site diagnostic cases, helps you quickly determine: does the sharp noise come from the blade or the equipment?

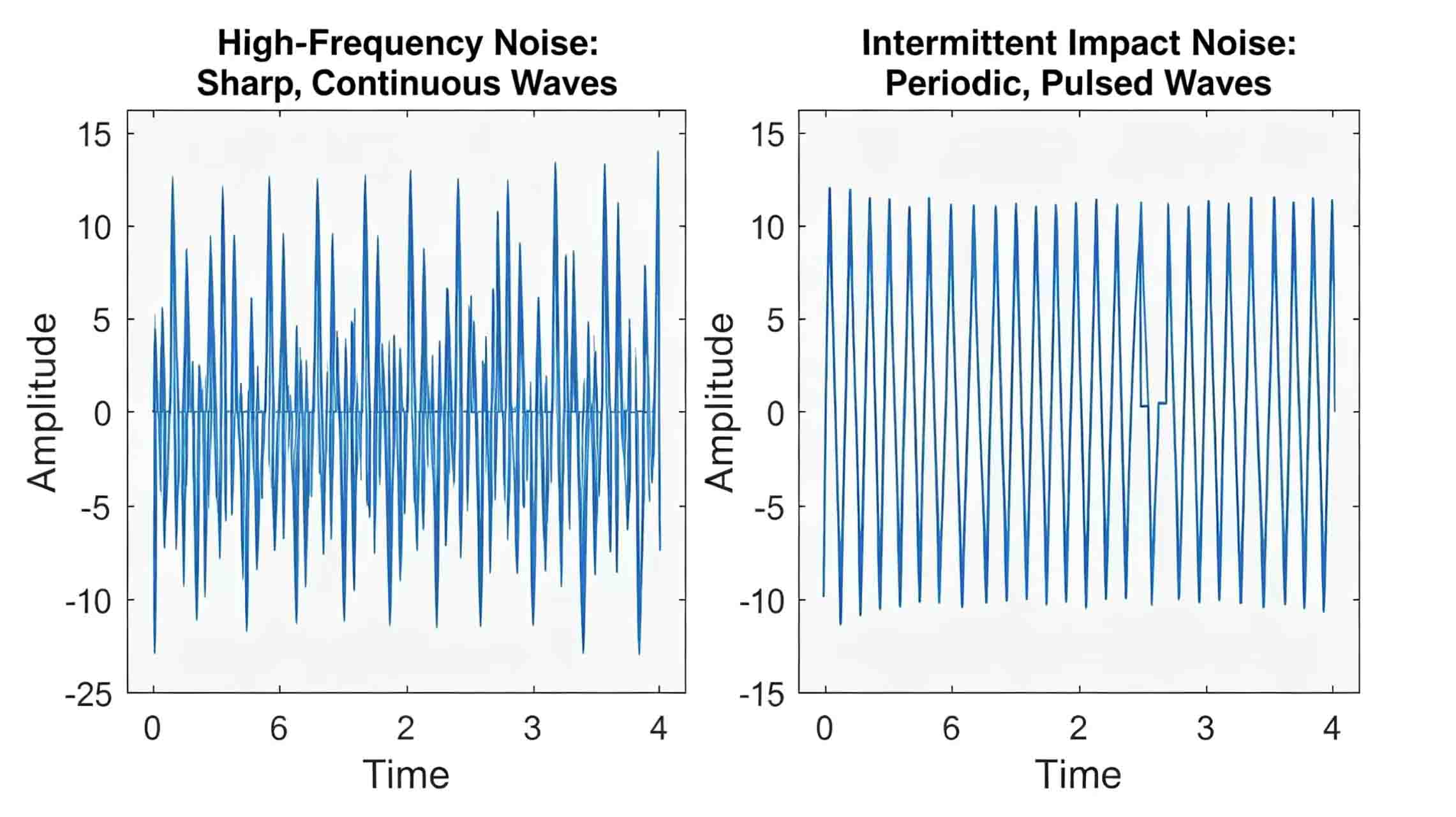

1. Two Typical Sources of Sharp Noise

1. High-frequency continuous screeching sound (similar to metal scraping)

This sound is continuous, sharp, and usually related to the rotational frequency of the blade or blade shaft. Common causes:

· Blade gap too small, upper and lower edges rubbing against each other

· Insufficient lubrication, dry friction between blade and material

· Edge clearance angle too small, excessive contact area between blade body and material

· Blade surface roughness too high, resulting in high friction coefficient

2. Periodic impact sound (similar to a "click" or "clack")

This sound occurs rhythmically, once or several times per revolution. Common causes:

· Blade edge has chipping; the chipped area impacts the material during rotation

· Blade or blade shaft eccentricity, producing an impact each revolution

· Excessive clearance between blade bore and blade shaft, causing the blade to wobble on the shaft

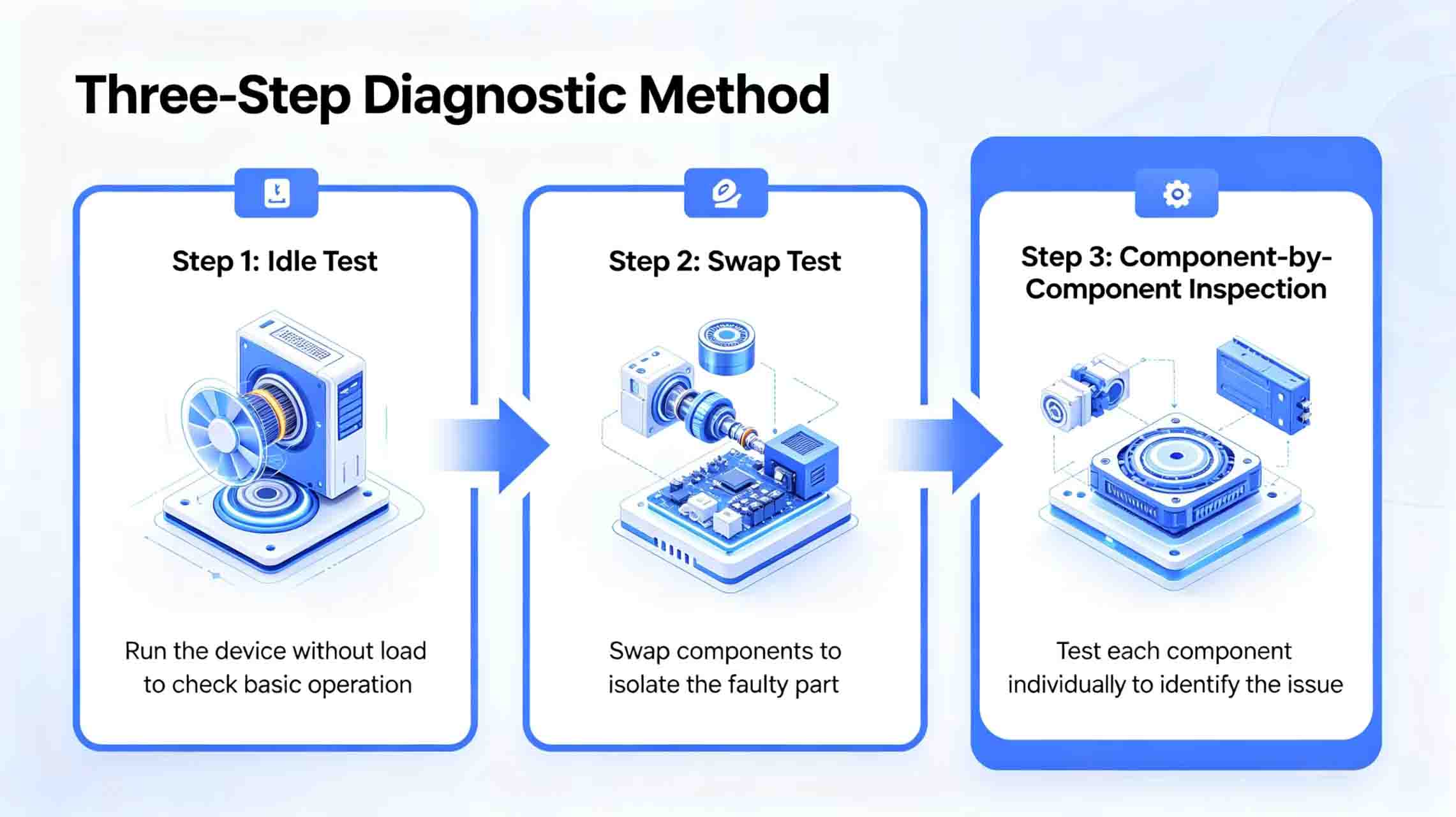

2. Three-Step Diagnosis: Blade or Equipment?

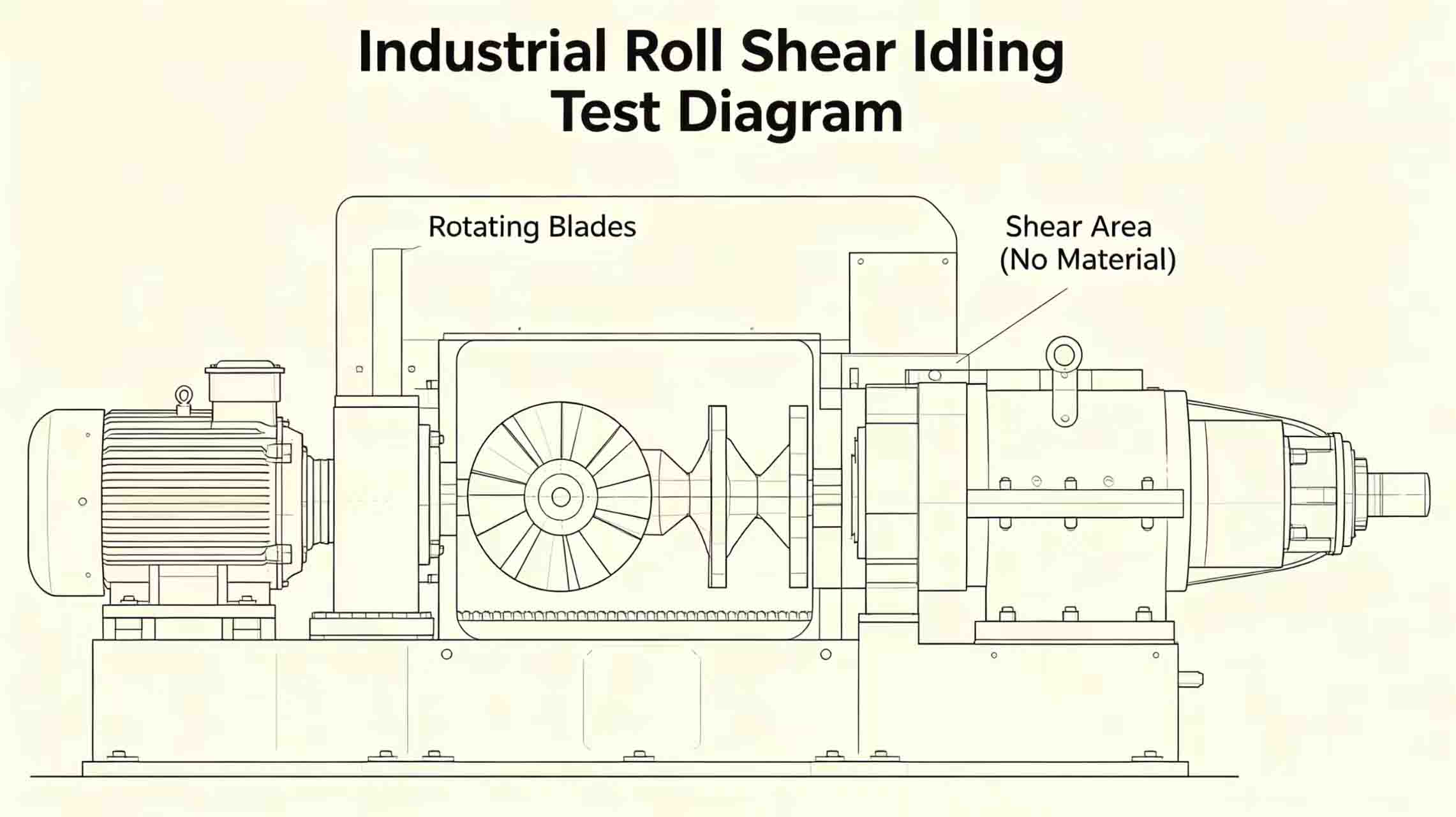

Step 1: No-load test

Remove the material and let the slitter blades run at no load. If the noise disappears → the problem lies with the material or cutting parameters. If the noise persists → the problem lies with the blade or equipment.

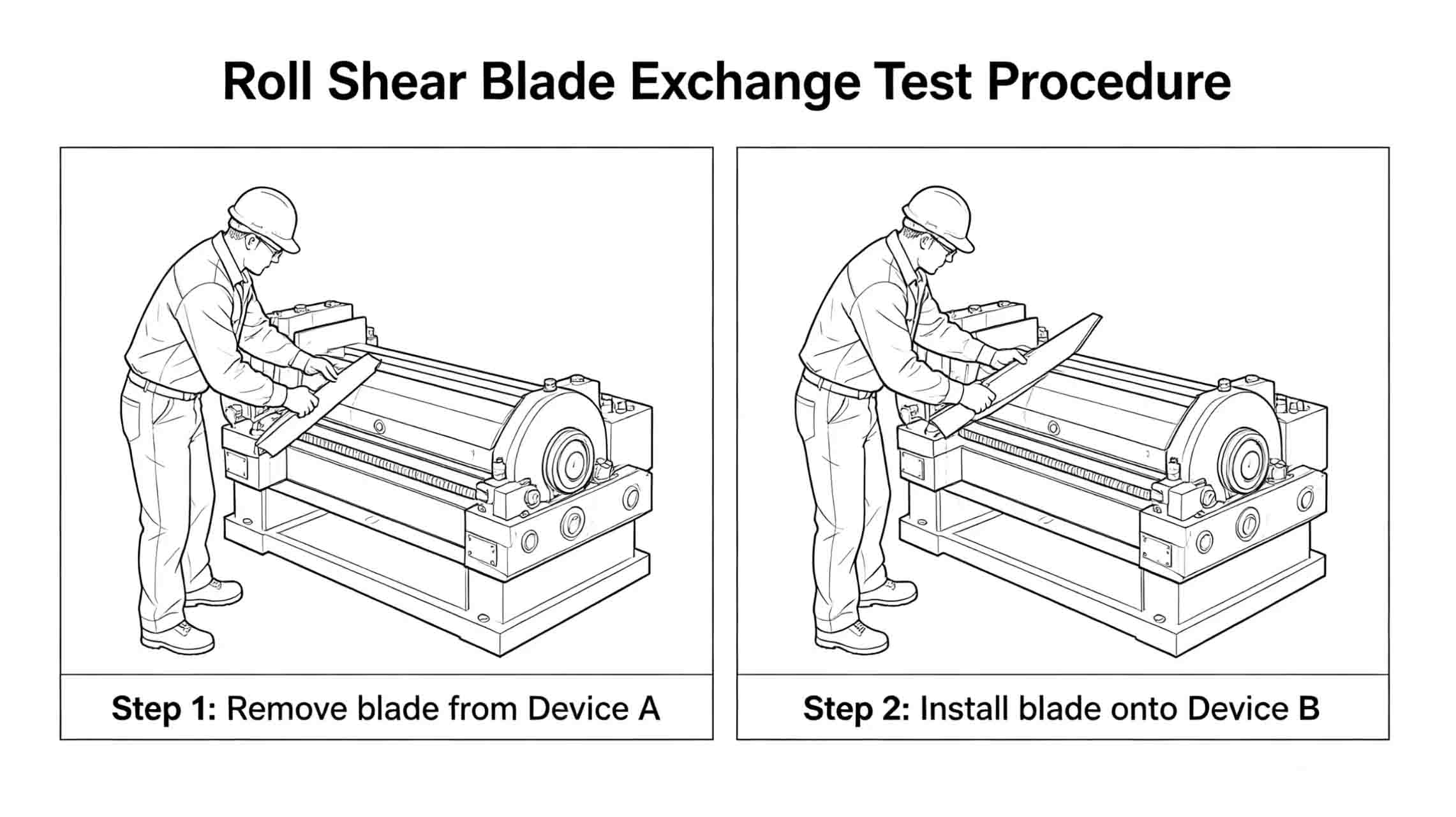

Step 2: Exchange test

Move the noisy circular blade to another normal machine and run it. If the noise follows the blade → the problem is with the blade itself. If the noise stays with the original machine → the problem is with the equipment.

Step 3: Component-by-component inspection

· Remove the blade and rotate the blade shaft alone; listen for abnormal bearing noise.

· Check blade shaft runout (measure with a dial indicator; radial runout should be ≤0.005mm).

· Check blade gap (measure with a feeler gauge; should be 5%-10% of material thickness).

3. Blade-Related Noise Issues

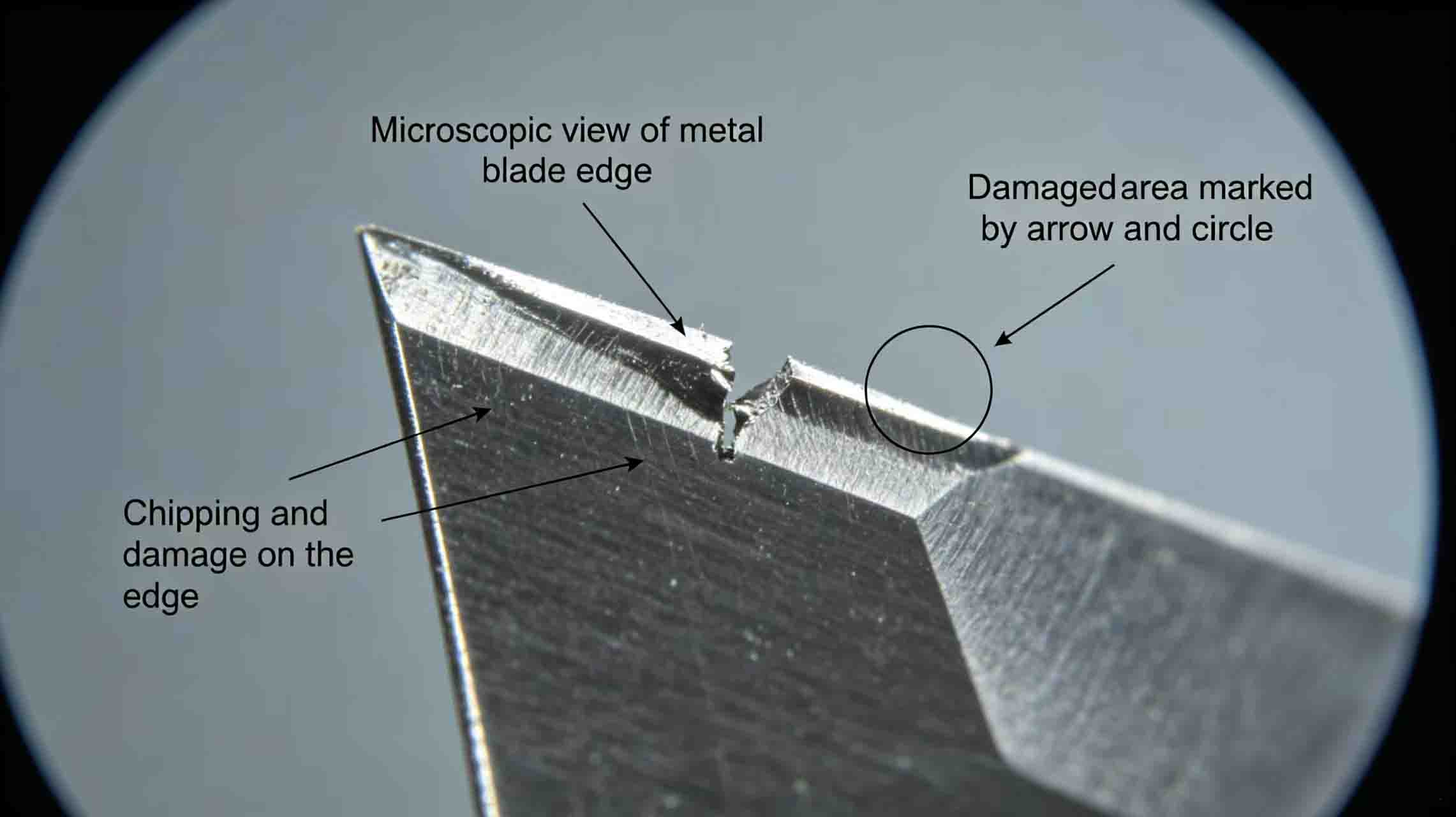

1. Edge chipping

Circular blades for stainless steel strip slitting may develop tiny edge chips when encountering hard spots in the material. When the chipped area rotates into contact, it impacts the material, producing a periodic "clack" sound.

2. Uneven edge wear

Alloy blades for silicon steel slitting are prone to localized wear bands due to the hardness of the material. The alternating contact of worn and unworn areas with the material produces a periodic screeching sound.

3. Coating peeling

After the PVD coating of high-speed slitter blades peels off, the exposed substrate has a higher friction coefficient with the material, generating a continuous screeching sound.

4. Blade deformation

Ultra-thin circular blades may develop end face warpage during heat treatment or use, causing the edge trajectory to become wavy during rotation and producing high-frequency noise.

4. Equipment-Related Noise Issues

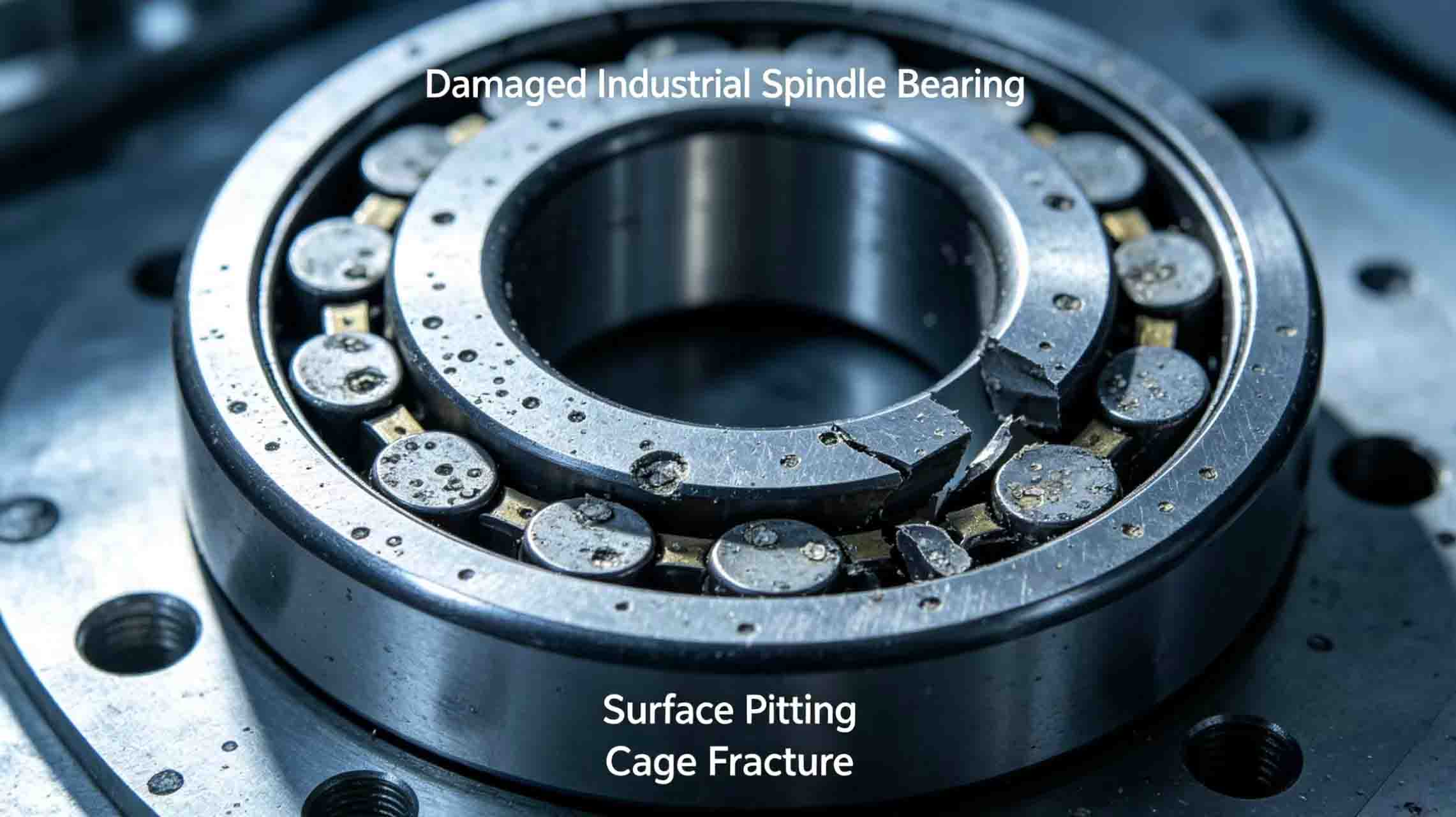

1. Bearing damage

When spindle bearings are worn or pitted, the rolling elements passing over damaged areas produce high-frequency vibration and screeching, intensifying with increasing speed.

2. Bent blade shaft

A slightly bent blade shaft creates a radial impact once per revolution, producing a rhythmic impact sound.

3. Excessive gear backlash

Worn transmission gears with increased backlash produce impact noise during gear meshing under cutting loads.

4. Lubrication system failure

Insufficient lubricant or blocked oil passages cause bearings and gears to run under dry conditions, producing metal-on-metal screeching sounds.

5. Solutions

Blade issues:

· Chipping or wear → return to factory for resharpening or replacement.

· Coating peeling → recoat or replace with custom slitter blades.

· Deformation → check flatness; scrap if out of tolerance.

Equipment issues:

· Bearing damage → replace spindle bearings and inspect the blade shaft.

· Bent blade shaft → straighten or replace.

· Lubrication system → clean oil passages and replace lubricant.

6. Mingbai Technology's Diagnostic Services

Mingbai Mechanical Tool Technology Co., Ltd. offers noise diagnostic services:

· Free remote audio diagnosis (record the equipment running sound and send it to us).

· On-site vibration testing using a vibration meter to capture spectrum data.

· Issue a diagnostic report clearly identifying the noise source and providing solutions.

· Provide noise reduction recommendations (gap adjustment, lubrication improvement, blade selection).

7. Case Study

A stainless steel strip slitting plant experienced a sharp, continuous piercing noise from circular blades for precision slitting during cutting. The customer tried blades from three different suppliers, but the noise persisted. Mingbai engineers inspected on-site and found that the radial clearance of the lower blade shaft bearing was 0.08mm (standard ≤0.02mm), and the bearing cage had fractured. After bearing replacement, the noise completely disappeared.

Conclusion

When slitter blades produce sharp noise during cutting, it could be a blade problem or an equipment problem. Use the three-step method of "no-load test + exchange test + component-by-component inspection" to quickly locate the source. Mingbai Technology is ready to help you eliminate noise and restore smooth production with our professional diagnostic capabilities.
