Ultra-thin circular blades

In slitting production, many users retrieve circular blades from long-term warehouse storage and find yellowish-brown rust spots on the cutting edge. When faced with rust spots, the most common concern is: do these rust spots affect cutting performance? Can the blade still be used? Mingbai Mechanical Tool Technology Co., Ltd., based on materials science and field experience, provides scientific judgment criteria and handling recommendations.   1. The Nature and Hazards of Rust Spots   Rust spots are the product of electrochemical reactions between the blade's metal surface and oxygen and moisture in the air. For precision mechanical blades made of high-carbon steel, high-speed steel, and similar materials, once rusting begins, it penetrates from the surface inward. The harm of rust spots depends on three factors: location, depth, and morphology.   2. Three Types of Rust Spots on the Cutting Edge     Surface flash rust (mild) Characteristics: Yellowish-brown powdery rust, present only on the surface, depth < 0.01mm, removable with a cloth. Impact: After removal, no visible pits remain on the edge — does not affect performance.   Pitting rust (moderate) Characteristics: Dark brown or black spots, depth 0.01-0.03mm, leaving tiny pits the size of a pinprick after removal. Impact: May affect cutting quality, depending on specific working conditions.   Pitted/crater rust (severe) Characteristics: Dark brown or black depressions, depth > 0.03mm, leaving obvious pits or grooves after removal. Impact: Significantly affects performance, causing burrs or chipping during cutting — replacement is recommended.   3. Four-Step Method to Determine Whether Rust Spots Affect Performance   Step 1: Check the rust spot location   Rust spots on the cutting edge → directly affect cutting quality and require careful handling. Rust spots on the blade body (non-edge areas) → do not affect performance; clean and use. Inspection method for rust spots on stored circular blades starts with location.     Step 2: Assess rust spot depth   Gently sand the rusted area with fine sandpaper or an oilstone. If the surface is flat without pits after sanding → flash rust, can continue to be used. If obvious pits remain → rust has penetrated the substrate; assess whether edge integrity is compromised.     Step 3: Check edge integrity   Use a magnifying glass to inspect the edge. If the edge remains straight and intact → rust has not damaged the edge geometry. If the edge appears jagged or has notches → rust has damaged the edge, and circular blades for precision slitting will directly affect cutting accuracy.     Step 4: Verify through trial cutting   After cleaning the rust, perform a trial cut. Smooth cut edge without burrs → performance restored. Obvious burrs or uneven edges → rust has affected performance; recommend replacement or return to factory for regrinding.     4. Rust Tolerance of Different Blade Materials   High-speed steel circular blades: Most sensitive to rust. Pitting deeper than 0.02mm is recommended for replacement.   Carbide blades: The substrate does not rust, but the cobalt binder phase may corrode; edge strength must be checked.   Stainless steel blades: Good corrosion resistance. Rust spots usually stay on the surface with shallow depth. Ultra-thin circular blades for food packaging film slitting are more sensitive to defects and require special attention.   Coated blades: Rusting tends to occur where the coating is damaged; confirm whether rust has penetrated the coating.   5. Rust Removal Methods   Flash rust removal Gently sand with a fine oilstone (1000 grit or higher) with oil, or lightly brush with a brass wire brush, then wipe with rust preventive oil for protection.   Moderate rust removal Sand with fine sandpaper (800-1200 grit) until the surface is bright, taking care not to alter the edge geometry. Then inspect edge integrity with a magnifying glass.   Deep rust treatment Directly scrap, or send back to Mingbai Technology for evaluation to see if it can be restored through regrinding. If the edge is intact after regrinding, it can continue to be used.   6. How to Prevent Rust Spots in Storage?   · Control storage environment humidity between 40%-60%. · Long-term stored custom slitter blades should be coated with rust preventive oil and vacuum-packed. · Regularly inspect inventory, spot-check every 3 months. · Store blades of different materials separately to avoid galvanic corrosion.     7. Mingbai Technology's Rust Inspection Services   Mingbai Mechanical Tool Technology Co., Ltd. offers rust evaluation for stored circular blades services:   · Free visual inspection to determine rust type and depth. · Microscope inspection of edge integrity. · Provide repair or replacement recommendations. · Professional rust removal and regrinding services for repairable blades.   Conclusion   Rust spots on the cutting edge of circular blades after long-term storage do not necessarily mean the blade is scrap. Surface flash rust can be cleaned and does not affect performance. Pitting rust requires assessment of location and depth. Pitted/crater rust or edge damage should be scrapped or sent back for repair. The key steps are: "check location, measure depth, inspect edge, verify through trial cutting." Mingbai Technology is ready to provide professional rust inspection and repair services for you. Website: www.mingbaiblade.com

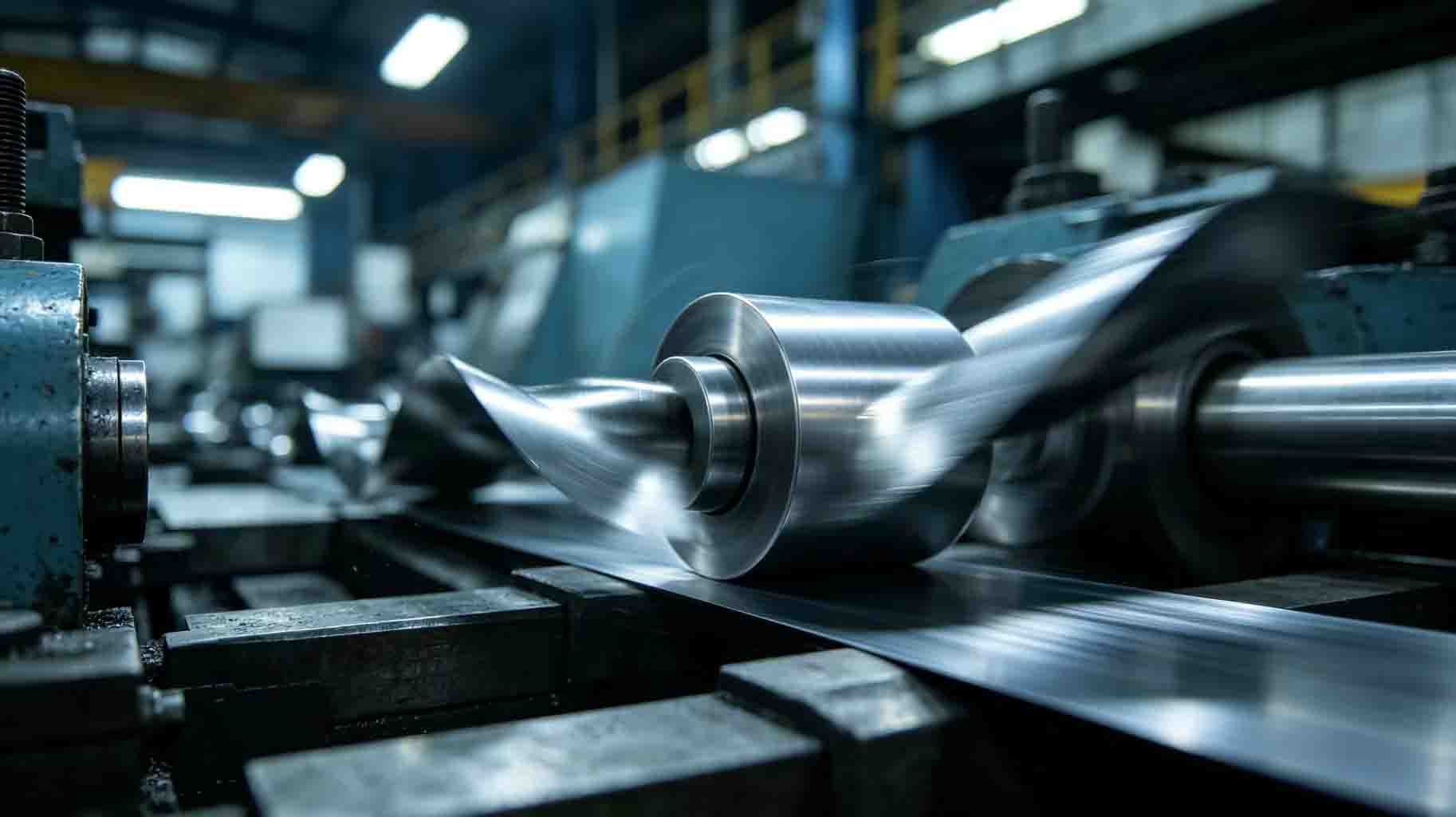

In metal slitting operations, a sudden sharp, piercing noise from slitter blades during cutting is an alarming signal. Such noise not only affects the working environment but also often indicates potential issues with the blade or equipment. Many operators struggle to identify the source of the noise, blindly replacing blades or stopping production for inspection, which wastes time and increases costs. Mingbai Mechanical Tool Technology Co., Ltd., based on extensive on-site diagnostic cases, helps you quickly determine: does the sharp noise come from the blade or the equipment?   1. Two Typical Sources of Sharp Noise     1. High-frequency continuous screeching sound (similar to metal scraping)   This sound is continuous, sharp, and usually related to the rotational frequency of the blade or blade shaft. Common causes:   · Blade gap too small, upper and lower edges rubbing against each other · Insufficient lubrication, dry friction between blade and material · Edge clearance angle too small, excessive contact area between blade body and material · Blade surface roughness too high, resulting in high friction coefficient   2. Periodic impact sound (similar to a "click" or "clack")   This sound occurs rhythmically, once or several times per revolution. Common causes:   · Blade edge has chipping; the chipped area impacts the material during rotation · Blade or blade shaft eccentricity, producing an impact each revolution · Excessive clearance between blade bore and blade shaft, causing the blade to wobble on the shaft   2. Three-Step Diagnosis: Blade or Equipment?   Step 1: No-load test     Remove the material and let the slitter blades run at no load. If the noise disappears → the problem lies with the material or cutting parameters. If the noise persists → the problem lies with the blade or equipment.   Step 2: Exchange test   Move the noisy circular blade to another normal machine and run it. If the noise follows the blade → the problem is with the blade itself. If the noise stays with the original machine → the problem is with the equipment.   Step 3: Component-by-component inspection   · Remove the blade and rotate the blade shaft alone; listen for abnormal bearing noise. · Check blade shaft runout (measure with a dial indicator; radial runout should be ≤0.005mm). · Check blade gap (measure with a feeler gauge; should be 5%-10% of material thickness).   3. Blade-Related Noise Issues   1. Edge chipping   Circular blades for stainless steel strip slitting may develop tiny edge chips when encountering hard spots in the material. When the chipped area rotates into contact, it impacts the material, producing a periodic "clack" sound.     2. Uneven edge wear   Alloy blades for silicon steel slitting are prone to localized wear bands due to the hardness of the material. The alternating contact of worn and unworn areas with the material produces a periodic screeching sound.   3. Coating peeling   After the PVD coating of high-speed slitter blades peels off, the exposed substrate has a higher friction coefficient with the material, generating a continuous screeching sound.   4. Blade deformation   Ultra-thin circular blades may develop end face warpage during heat treatment or use, causing the edge trajectory to become wavy during rotation and producing high-frequency noise.   4. Equipment-Related Noise Issues   1. Bearing damage   When spindle bearings are worn or pitted, the rolling elements passing over damaged areas produce high-frequency vibration and screeching, intensifying with increasing speed.     2. Bent blade shaft   A slightly bent blade shaft creates a radial impact once per revolution, producing a rhythmic impact sound.   3. Excessive gear backlash   Worn transmission gears with increased backlash produce impact noise during gear meshing under cutting loads.   4. Lubrication system failure   Insufficient lubricant or blocked oil passages cause bearings and gears to run under dry conditions, producing metal-on-metal screeching sounds.   5. Solutions   Blade issues:   · Chipping or wear → return to factory for resharpening or replacement. · Coating peeling → recoat or replace with custom slitter blades. · Deformation → check flatness; scrap if out of tolerance.   Equipment issues:   · Bearing damage → replace spindle bearings and inspect the blade shaft. · Bent blade shaft → straighten or replace. · Lubrication system → clean oil passages and replace lubricant.   6. Mingbai Technology's Diagnostic Services   Mingbai Mechanical Tool Technology Co., Ltd. offers noise diagnostic services:   · Free remote audio diagnosis (record the equipment running sound and send it to us). · On-site vibration testing using a vibration meter to capture spectrum data. · Issue a diagnostic report clearly identifying the noise source and providing solutions. · Provide noise reduction recommendations (gap adjustment, lubrication improvement, blade selection).     7. Case Study   A stainless steel strip slitting plant experienced a sharp, continuous piercing noise from circular blades for precision slitting during cutting. The customer tried blades from three different suppliers, but the noise persisted. Mingbai engineers inspected on-site and found that the radial clearance of the lower blade shaft bearing was 0.08mm (standard ≤0.02mm), and the bearing cage had fractured. After bearing replacement, the noise completely disappeared.   Conclusion   When slitter blades produce sharp noise during cutting, it could be a blade problem or an equipment problem. Use the three-step method of "no-load test + exchange test + component-by-component inspection" to quickly locate the source. Mingbai Technology is ready to help you eliminate noise and restore smooth production with our professional diagnostic capabilities. Website: www.mingbaiblade.com
