Is There a Universal Calculation Formula for the Side Gap Between Upper and Lower Slitter Blades?

In metal slitting operations, the side gap (also called lateral clearance) between slitter blades is one of the most critical process parameters. If the side gap is too large, the cut edge becomes jagged with burrs. If the side gap is too small, the blades rub against each other, generate heat, and may even chip. So, is there a universal calculation formula to quickly determine a reasonable side gap value? Mingbai Mechanical Tool Technology Co., Ltd., based on domestic and international standards and years of practice, provides you with a scientific calculation method.

1. The Universal Calculation Formula for Side Gap

The core of side gap calculation is the "material thickness percentage method," with the formula as follows:

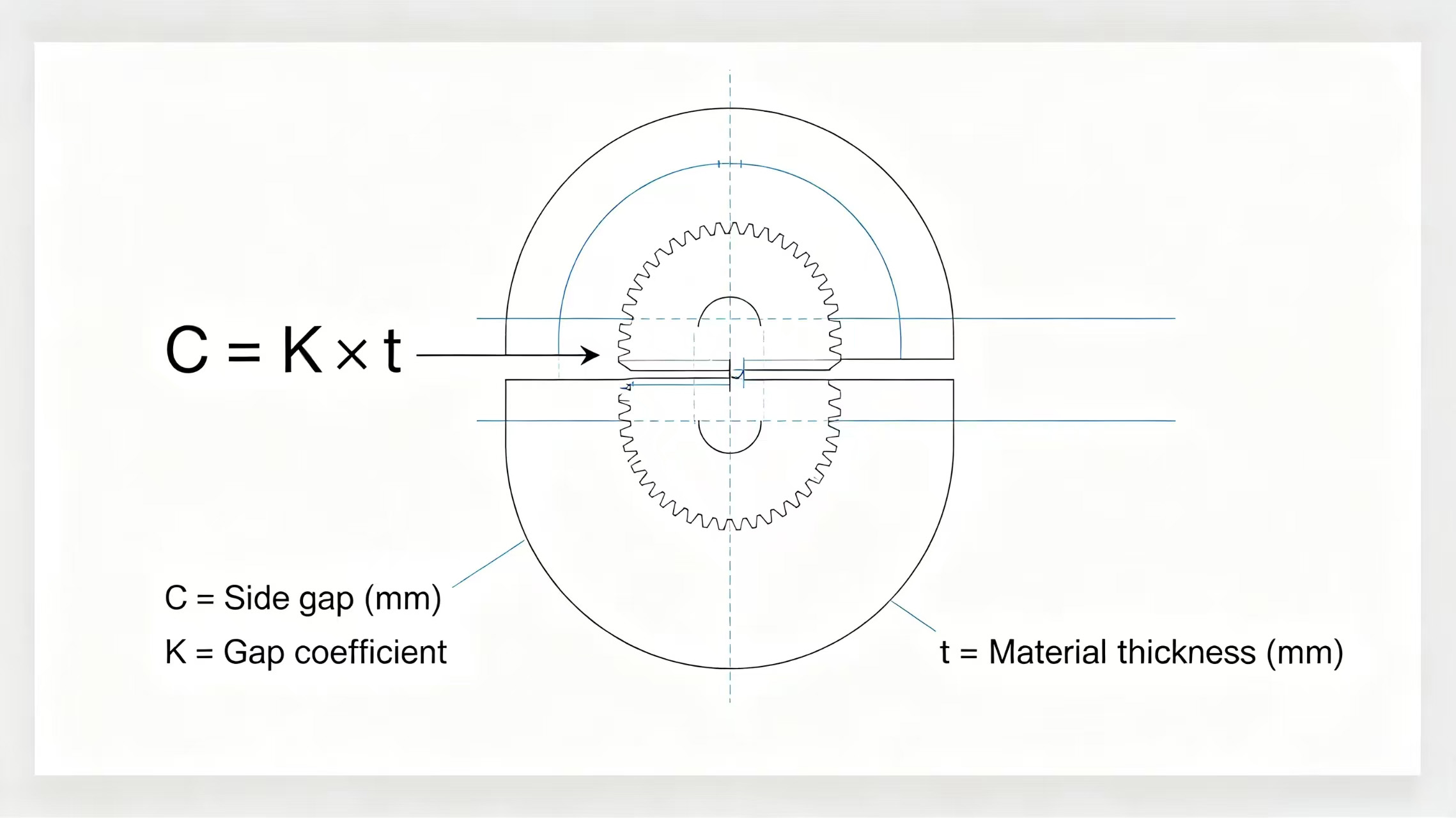

Side Gap C = K × t

Where:

· C = Side gap (mm)

· K = Gap coefficient (dimensionless)

· t = Thickness of the material being sheared (mm)

Principles for selecting K value:

· Hard and brittle materials (silicon steel, high-carbon steel): K = 8%-12%

· Soft and tough materials (low-carbon steel, copper, aluminum): K = 5%-7%

· Medium hardness materials (ordinary carbon steel, stainless steel): K = 6%-10%

· Ultra-thin materials (<0.3mm): K = 3%-5%

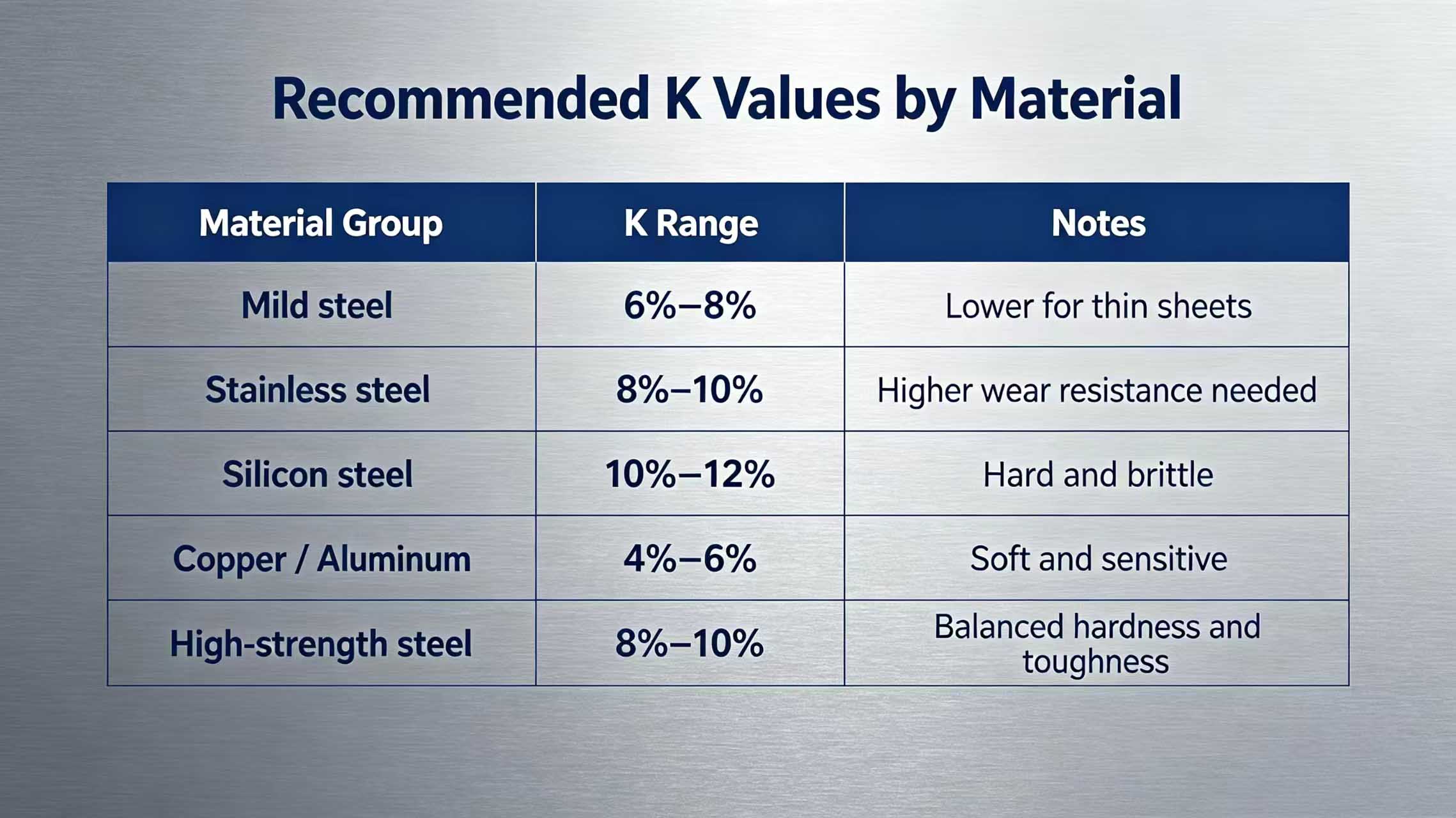

2. Recommended K Values for Different Materials

Ordinary carbon steel (Q235, SPCC, DC01): K = 6%-8%. Use the lower limit for thin materials (0.5mm at 6%) and the upper limit for thick materials (3mm at 8%). Circular blades for ordinary carbon steel slitting should be set according to this coefficient.

Stainless steel (304, 316, 430): K = 8%-10%. Stainless steel has severe work hardening, so a larger gap reduces friction between the edge and the material. Wear-resistant circular blades for stainless steel strip slitting are recommended with K = 9%.

Silicon steel: K = 10%-12%. The material is hard and brittle, requiring a larger gap to reduce impact. Alloy blades for silicon steel slitting are recommended with K = 11%.

Non-ferrous metals such as copper and aluminum: K = 4%-6%. Soft metals are sensitive to gap; too large a gap causes edge stringing. Circular blades for copper strip cutting are recommended with K = 5%.

High-strength steel: K = 8%-10%. Balancing hardness and toughness, the gap should not be too small. Custom blades for automotive panel slitting are recommended with K = 9%.

3. Other Factors Affecting K Value

1. Equipment rigidity

For equipment with good rigidity, the K value can be taken at the lower limit. For equipment with poor rigidity, use the upper limit to absorb impact.

2. Shearing speed

At high speeds (>100m/min), the K value should be reduced by 10%-15% compared to the conventional value to reduce vibration and temperature rise.

3. Blade material

Carbide blades, due to their high hardness and low deformation, can use a K value 5%-10% smaller than high-speed steel blades. High-hardness alloy blades can have a slightly smaller gap under the same working conditions.

4. Adjustment Method in Practical Application

Step 1: Calculate the initial gap using the formula

For example, for shearing 2.0mm thick 304 stainless steel, t = 2.0mm, K = 9%, then C = 2.0 × 9% = 0.18mm.

Step 2: Verify through trial cutting

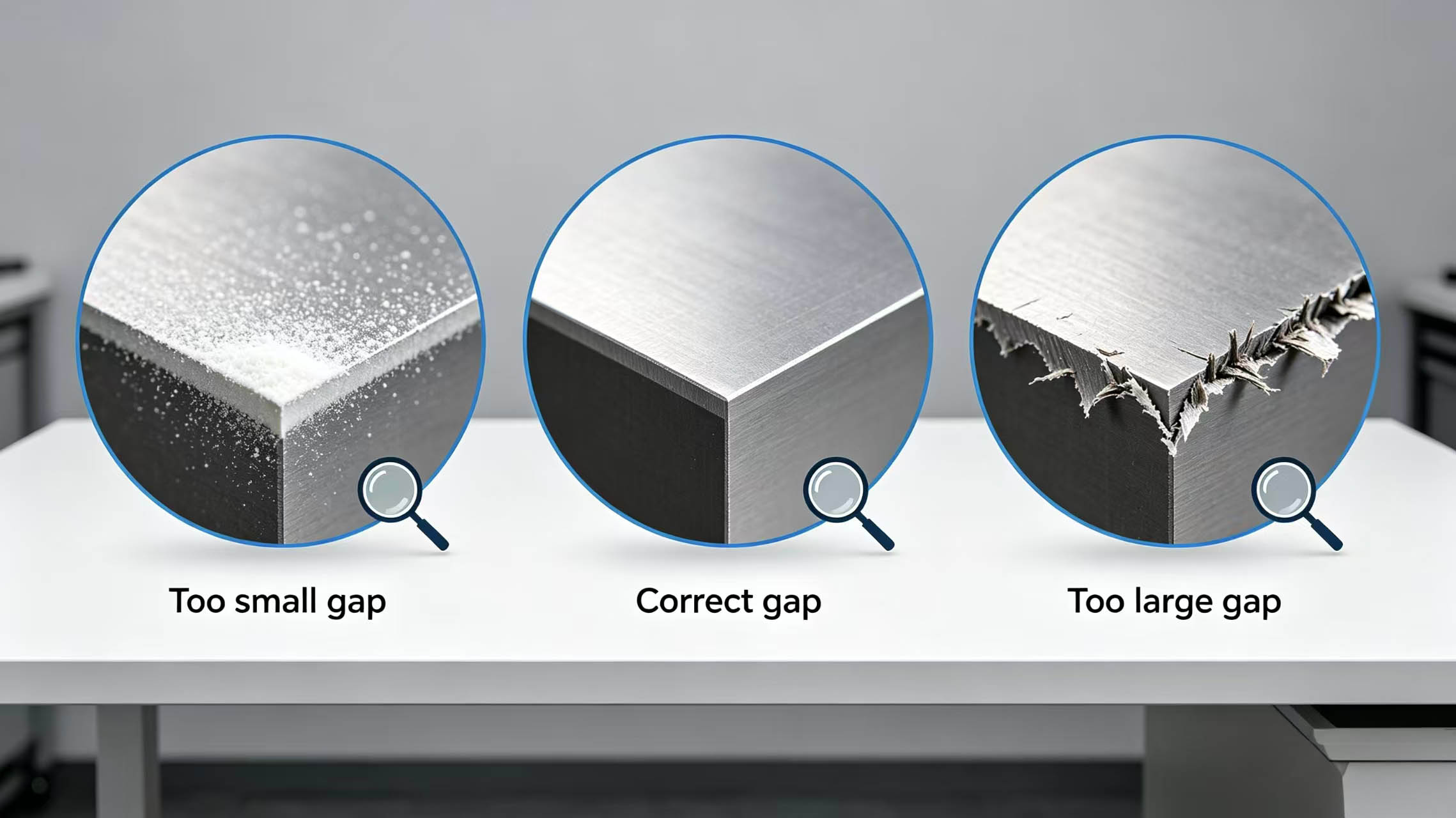

Slit a section of material at normal speed and inspect the cut edge with a magnifying glass:

· Small, uniform burrs → gap is appropriate

· Large burrs with tearing marks → gap is too large; reduce by 0.01-0.02mm

· Whitened edge with powder → gap is too small; increase by 0.01-0.02mm

Step 3: Record the optimal value

Record the verified optimal gap value on the process card for direct use next time.

5. Five Precautions for Gap Adjustment

1. After each blade or material change, the gap must be re-measured and adjusted.

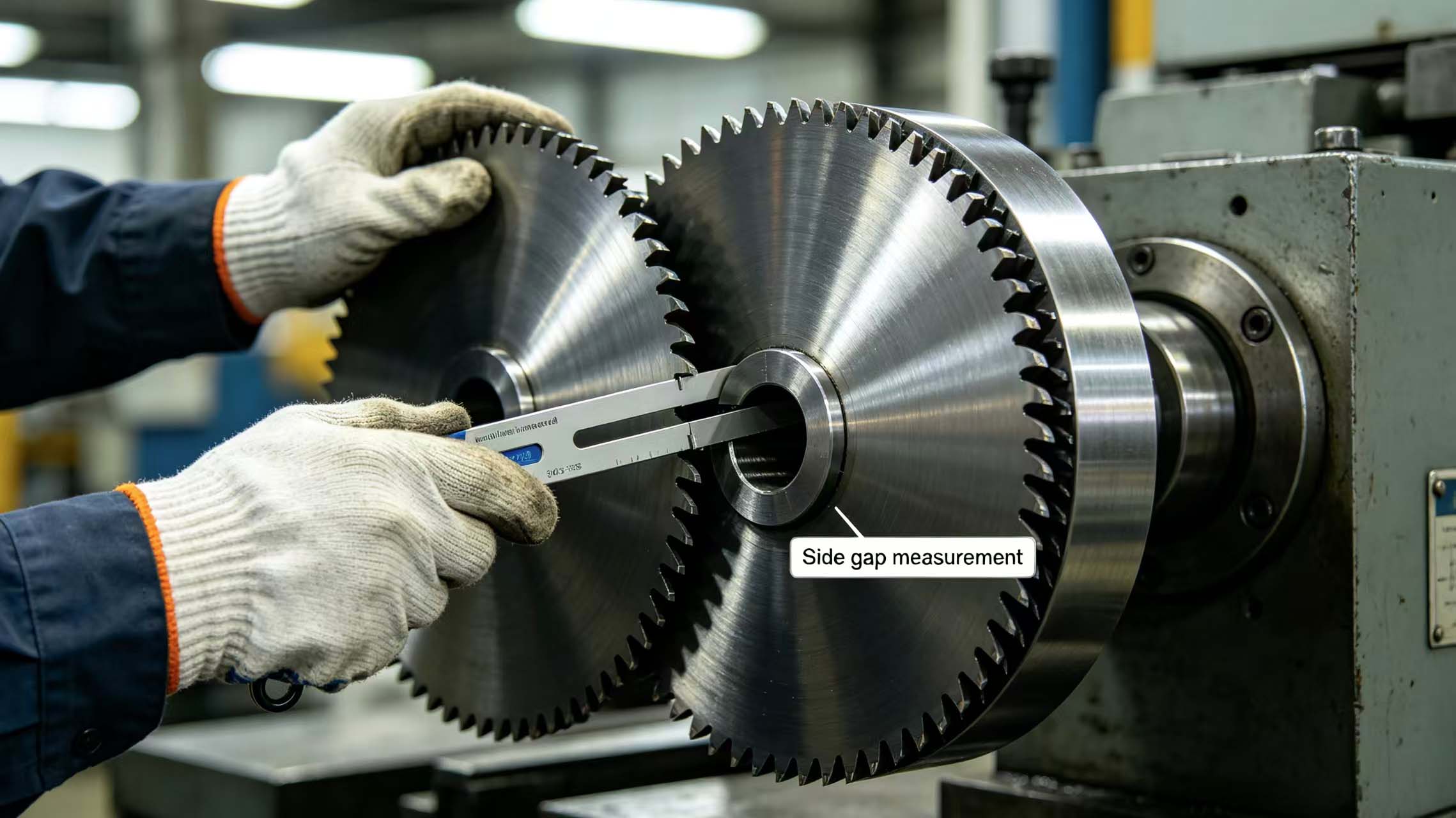

2. Use a feeler gauge for measurement; do not estimate by "feel."

3. After upper and lower blades are resharpened, the outer diameter becomes smaller, and the gap must be reset.

4. In multi-blade slitting, the gap for each blade should be consistent.

5. The gap adjustment precision for precision mechanical blades should be controlled within ±0.005mm.

6. Mingbai Technology's Gap Setting Services

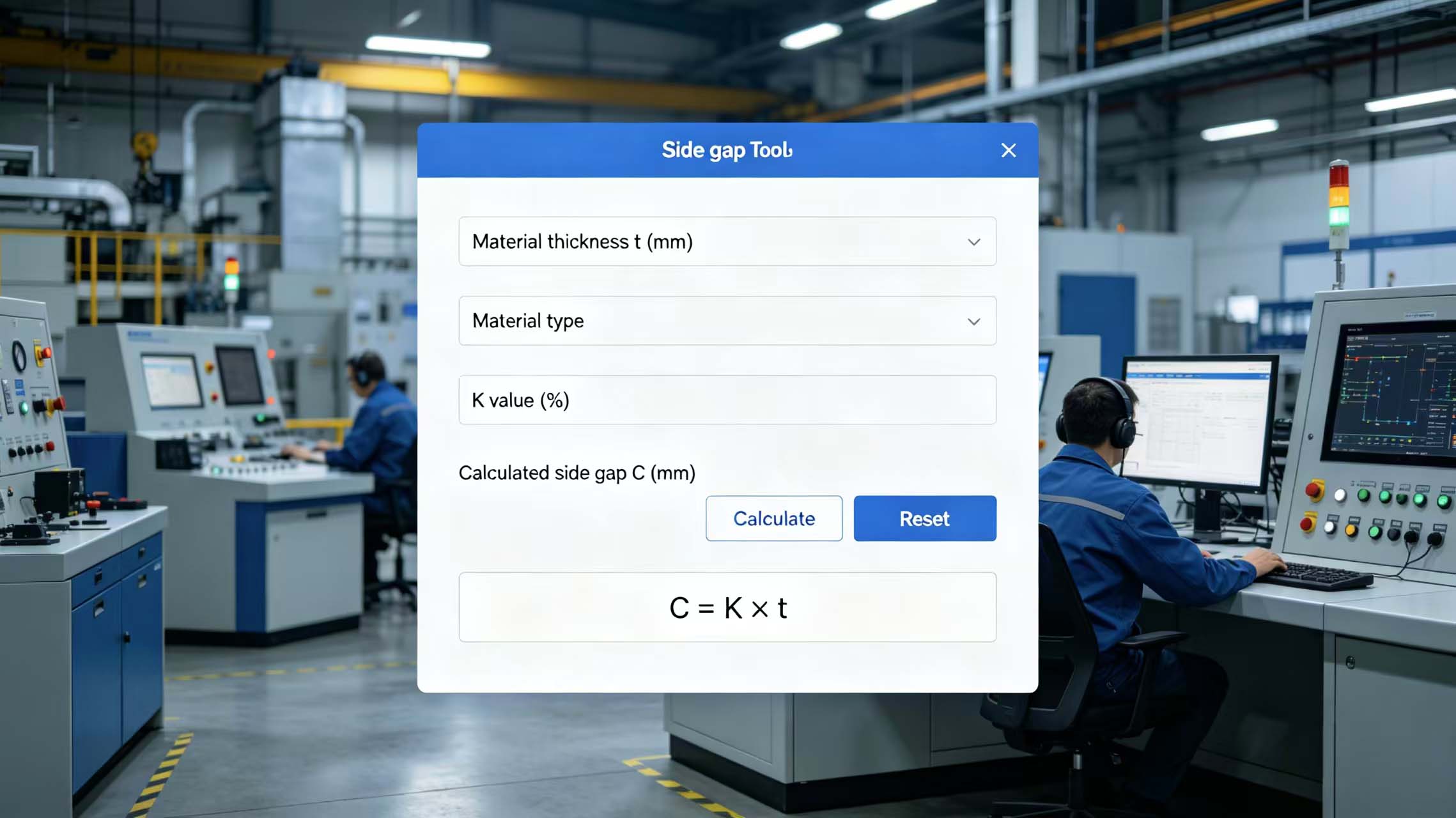

Mingbai Mechanical Tool Technology Co., Ltd. provides side gap calculation and optimization services:

· Free calculation of recommended gap values based on your material, equipment, and speed.

· On-site guidance for gap adjustment and trial cut verification.

· Supply of high-precision feeler gauges and gap measurement tools.

· For custom slitter blades, the gap value can be preset according to your working conditions.

7. Case Study

A stainless steel strip slitting plant used the same set of wear-resistant circular blades for stainless steel strip slitting to shear 1.0mm and 2.0mm stainless steel. The operator consistently used a 0.08mm gap for both thicknesses. As a result, the 1.0mm material cut well, but the 2.0mm material had severe burrs. Mingbai engineers calculated using the formula: 1.0mm × 9% = 0.09mm, 2.0mm × 9% = 0.18mm. After setting the gaps separately, the cut edge quality met standards for both thicknesses.

Conclusion

Although there is no "universal formula" for slitter blade side gap, the "C = K × t" calculation method covers the vast majority of working conditions. The key is selecting the K value — based on material, equipment, and speed, then fine-tuning through trial cuts. Mingbai Technology is ready to help you find the most suitable gap value with professional calculations and on-site services.
